Features
l Composed of 6 units of multi-core buffered cables around the central strength member, each unit has independent strength member and jacket.
l Easy splicing, suitable for large capacity data transmission.
l 36C ~ 144C fiber optional;
l Various yarn and jacket materials optional.
Features

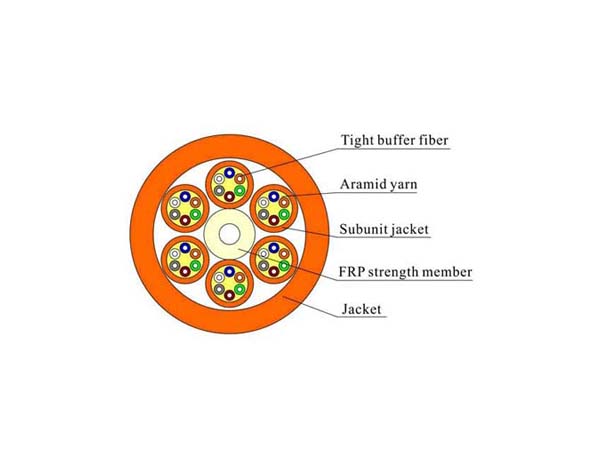

l Composed of 6 units of multi-core buffered cables around the
central strength member, each unit has independent strength member and jacket.
l Easy splicing, suitable for large capacity data transmission.
l 36C ~ 144C fiber optional;
l Various yarn and jacket materials optional.
Specifications
|
Core Num |
Units |
Cores in each unit |
Outer Diameter (mm) |
Weight (kg/km) |
|
36 |
6 |
6 |
19.9±0.8 |
210 |
|
48 |
6 |
8 |
20.0±0.8 |
250 |
|
72 |
6 |
12 |
21.0±0.8 |
300 |
|
96 |
6 |
16 |
25.5±0.8 |
460 |
|
144 |
6 |
24 |
28.2±0.8 |
680 |
Note：1.Different materials
and cable structures could be customized;
2.
Specifications are subject to change due to different material and structure.
