Features

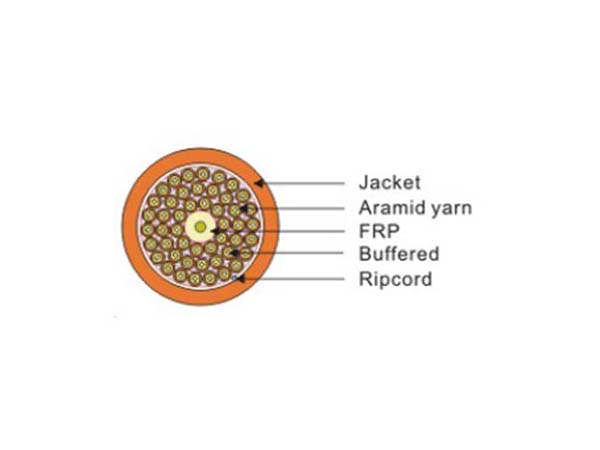

l Each simplex cable contains strength aramid yarn, high strength.
l Good bending performance, no gel, easy to be spliced.
l 2C ~ 48C fiber optional;
l Various yarn and jacket materials optional.
Features
l Each simplex cable contains strength aramid yarn, high strength.
l Good bending performance, no gel, easy to be spliced.
l 2C ~ 48C fiber optional;
l Various yarn and jacket materials optional.
Specifications
|
Core number |
4 |
6 |
8 |
12 |
24 |
48 |
|
|
Outer Diameter (mm) |
7.5±0.5 |
9.0±0.5 |
10.0±0.5 |
12.5±0.5 |
15.5±0.5 |
20.5±0.5 |
|
|
Weight (kg/km) |
51 |
68 |
88 |
128 |
198 |
246 |
|
|
Max.
tensile Strength (N) |
Short-term |
660 |
700 |
800 |
1200 |
1200 |
1800 |
|
Long-term |
200 |
200 |
250 |
400 |
500 |
600 |
|
|
Max. Crush Resistance (N/100mm2) |
Short-term |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Long-term |
300 |
300 |
300 |
300 |
300 |
300 |
|
Note：1.Different materials
and cable structures could be customized;
2.
Specifications are subject to change due to different material and structure.
