Features
l Simple and convenient structure
l Good design for lateral crushing resistance
l White/black color normally, other color upon request
l Various material for out jacket optional
Features
l Simple and convenient structure
l Good design for lateral crushing resistance
l White/black color normally, other color upon request
l Various material for out jacket optional

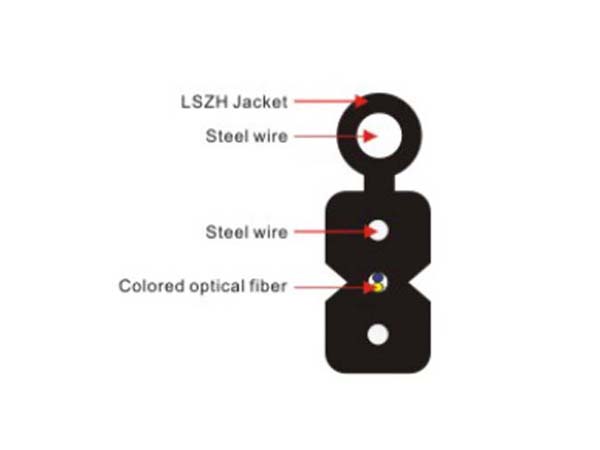

Drop cable without IB
(Steel wire)
Specifications
|
Core Num |
Outer Diameter (mm) |
Weight (kg/km) |
Min. Bending Radius (mm) |
|
|
Dynamic |
Static |
|||
|
1 |
(3.0±0.1) * (2.0±0.1) |
9 |
20H |
10H |
|
2 |
(3.0±0.1) * (2.0±0.1) |
9 |
20H |
10H |
Drop cable with IB
(Steel wire)
Specifications
|
Core Num |
Outer Diameter (mm) |
Weight (kg/km) |
Min. Bending Radius (mm) |
|
|
Dynamic |
Static |
|||
|
2 |
(5.0±0.1) * (2.0±0.1) |
20 |
20H |
10H |
Note：1.Different materials
and cable structures could be customized;
2.
Specifications are subject to change due to different material and structure.
