Active Products

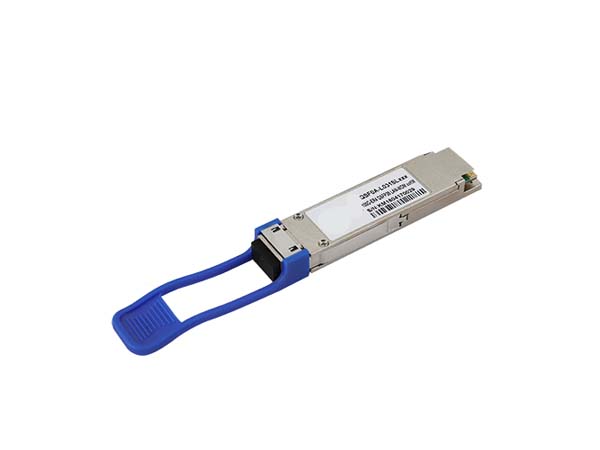

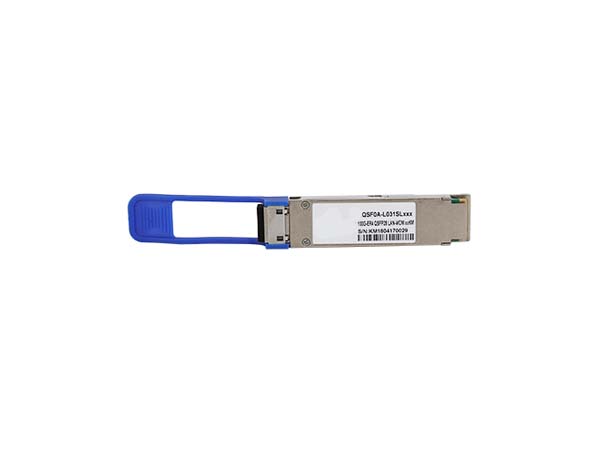

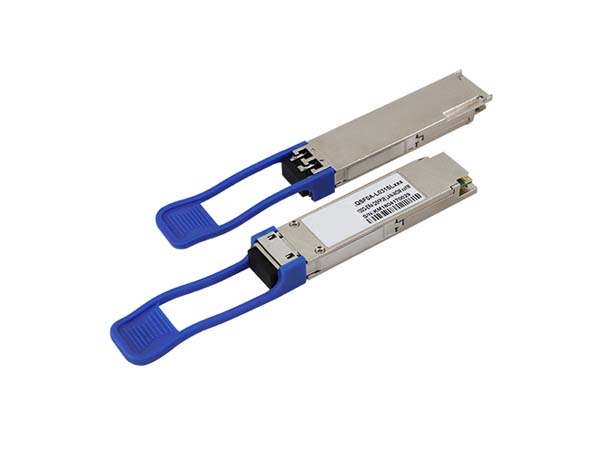

100Gb/s QSFP28 Transceivers


Features

● 4 Parallel lanes design (SR4, eSR4, PSM LR4, PSM IR4)

● 4 CWDM lanes Mux design (LR4, CWDM4)

● Compliant with QSFP28 MSA Specification

● Low power design

● Operating Temperature: 0~70℃





Leave A Message

Applications



●  InfiniBand

●  100G Ethernet

●  Data center, sever and Super computer



Features



●  4 Parallel lanes design (SR4, eSR4, PSM LR4, PSM IR4)

●  4 CWDM lanes Mux design (LR4, CWDM4)

●  Compliant with QSFP28 MSA Specification

●  Low power design

●  Operating Temperature: 0~70℃



Ordering Information



Part No.

Description

Data Rate

Wavelength

Distance

Power Consumption

Tx Power
(dBm)

Rx OMA Sensitivity
(dBm)

Connector

&Fiber

LQ28-500

QSFP28 SR4

100Gbps

850nm VCSEL

100m

＜2W

-4~ +2.4

-5.6

MPO/MMF

LQ28-501

QSFP28 eSR4

100Gbps

850nm VCSEL

300m

＜2W

-4~ +2.4

-8

MPO/MMF

LQ28-100

QSFP28 CWDM4

100Gbps

 CWDM

2Km

＜3.5W

-6~ +2.5

-10

LC/SMF

LQ28-101

QSFP28 LR4

100Gbps

 LAN-WDM

10m

＜4.5W

-7~ +2.3

-8.6

LC/SMF

LQ28-102

QSFP28 RX4

100Gbps

RX Only

--

＜3.5W

--

-8.6

LC/SMF

LQ28-901

QSFP28 PSM IR4

100Gbps

1310nm DFB

2Km

--

--

--

MPO/SMF

LQ28-120

QSFP LR4/OTU4

Dual Rate

100Gbps

112Gbps

LAN-WDM

10km

＜3.5W

--

--

LC/SMF
