Description

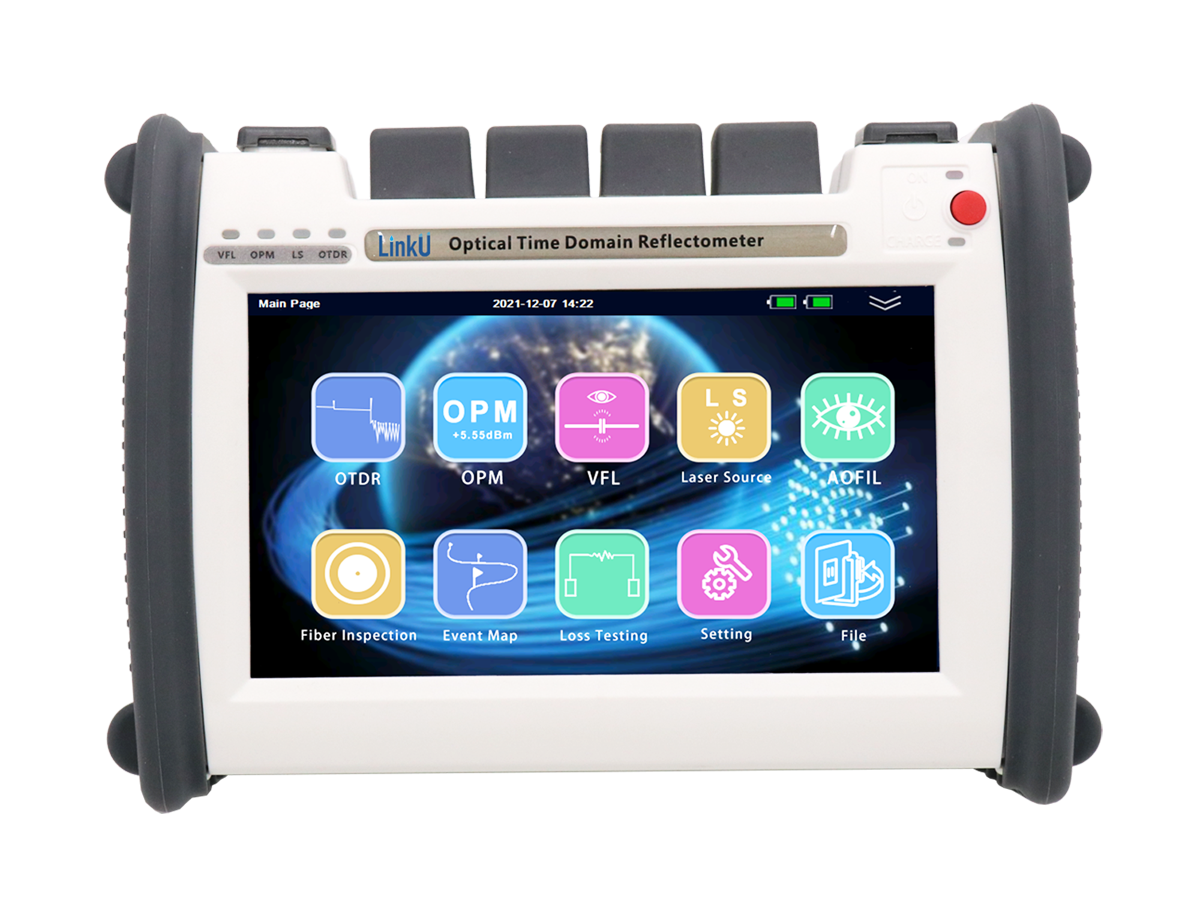

With the fast growing fiber optic network，the demand for reliable and ease-of-use field test instruments keeps increasing. LinkU LOT5200 OTDR is designed to help technicians make test quickly and accurately with simple steps. It combines various function modules in one unit, including OTDR, Optical Power Meter, stable Laser Source, Loss Tester, Visual Fault Locator and fiber microscope (optional), all the modules are very useful in optical fiber evaluation.
Features
Multi-Function OTDR Testing
● Auto/Manual testing and analysis
● Icon-display Fiber Mapper for easy interpretation of network events
● Multiple analysis functions on testing results：
Segment/Event point return loss，Multi curves comparison
● In-Line Measurement of PON systems through splitters
● Fault locating, fiber length/loss/return loss measurement
● Connector/ splice/ splitter/ macro bend/ fiber-end detection
● GR-196-CORE (.SOR) file format
● Flexible file Naming
● Screenshot and auto-saved
● Built-in Power Meter, Laser Source and VFL modules
High Performance Platform

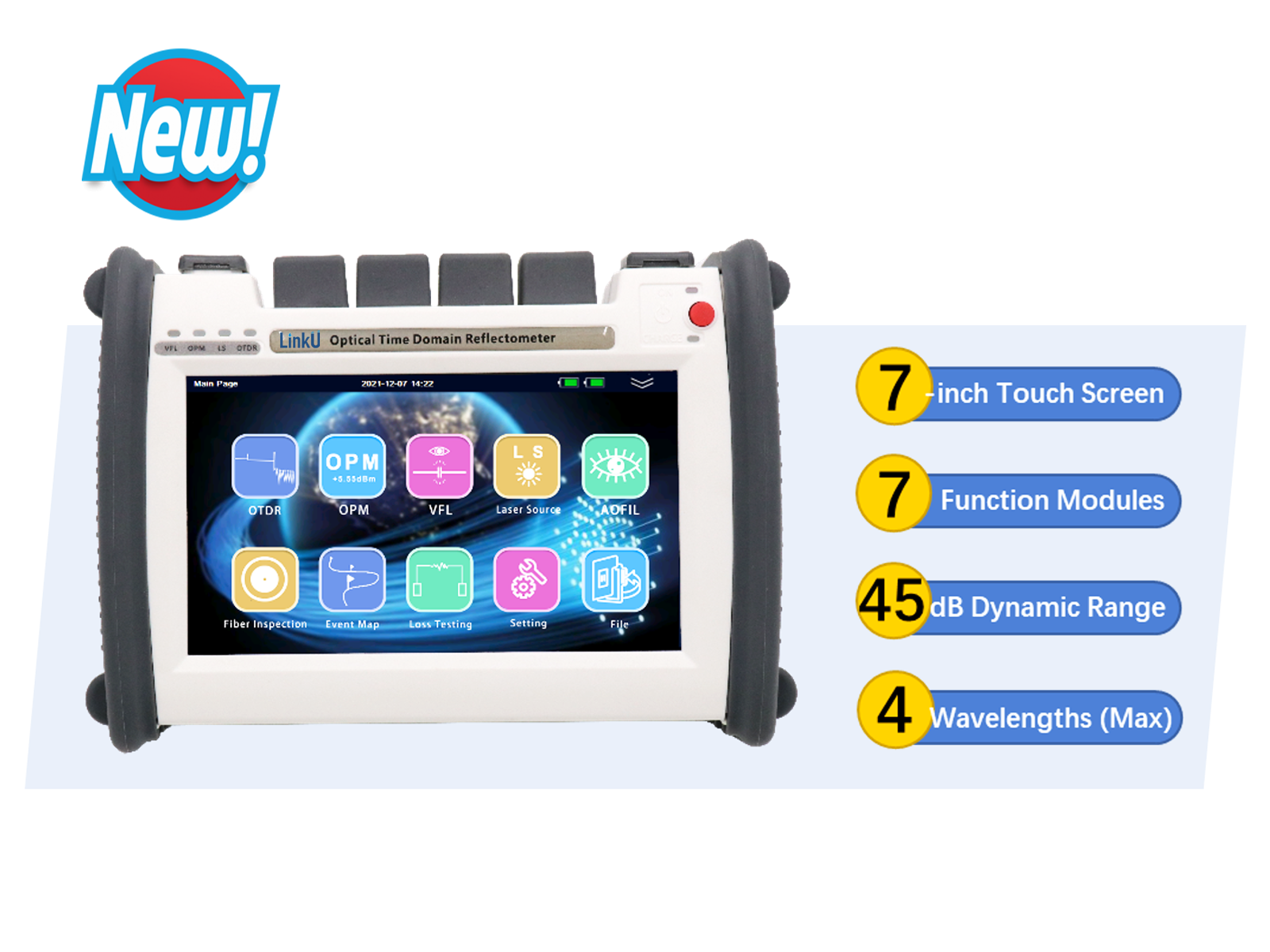

● 7-inch touch screen
● Lightweight, 1.1kg
● Excellent Man-Machine interface for easy operation
● Short dead zone: EDZ 1m, ADZ 5m
● 16G internal storage capacity
● Full range of models with multiple wavelengths selectable
850/1300/1310/1550/1490/1625/1650nm (customized)
● Damp-dust-shock proof
● Over 8 hours continuous operation
PC Software
● Multi traces analysis
● Single/multi traces printing in one report
● Batch editing and printing
● Bidirectional traces analysis
● CSV report formats
Stabilized Laser Source Module
● Wavelength same as the OTDR
● High precision and easy operation
Optical Power Meter Module
● Multi-wavelength Calibration
● High Precision and easy Operation
Specification
|
General |
|||||
|
Display |
7-inch TFT Capacitive Touch Screen, 800*480 pixel |
||||
|
Connectivity |
USB（Type A×1，Type B×1） |
||||
|
Storage Capacity |
16 GB |
||||
|
Power Supply |
Rechargeable Li-Ion Battery: 7.4V/2500mAh * 2pcs /AC Adapter |
||||
|
Battery Life |
Over 8 hours continuous operation, 20 hours standby |
||||
|
Operation Temp. |
-10°C - +50°C |
||||
|
Storage Temp. |
-40°C - +80°C |
||||
|
Humidity |
0 - 95% (non-Condensing) |
||||
|
Weight |
1.2kg（including battery） |
||||
|
Dimensions (L×W×H) |
215×155×68mm |
||||
|

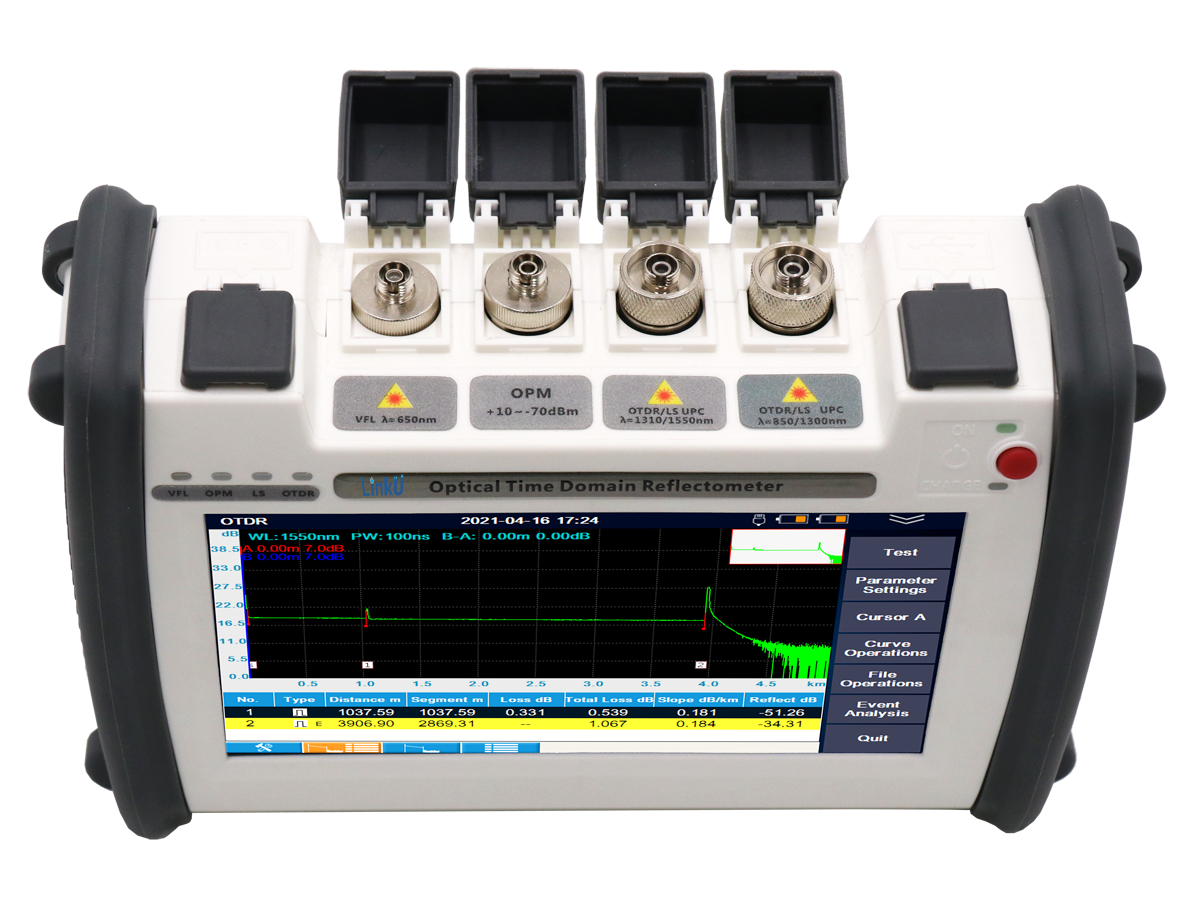

OTDR Module |
Wavelength (±20nm) |
Dynamic Range (1) (Db) |
EDZ (m) (2) |
ADZ(m) (2) |
|
|
LOT5200-SD32 |
1310/1550 |
32/30 |
1 |
5 |
|
|
LOT5200-SD35 |
1310/1550 |
35/33 |
1 |
5 |
|
|
LOT5200-SD40 |
1310/1550 |
40/38 |
1 |
5 |
|
|
LOT5200-SD42 |
1310/1550 |
42/40 |
1 |
5 |
|
|
LOT5200-SD45 |
1310/1550 |
45/43 |
1 |
5 |
|
|
LOT5200-SS32 |
1625 |
32 |
1 |
5 |
|
|
LOT5200-SS35 |
1625 |
35 |
1 |
5 |
|
|
LOT5200-SS38 |
1625 |
38 |
1 |
5 |
|
|
LOT5200-SS40 |
1625 |
40 |
1 |
5 |
|
|
LOT5200-SP35 |
1310/1490/1550 |
35/33/33 |
1 |
5 |
|
|
LOT5200-ST35 |
1310/1550/1625 |
35/33/32 |
1 |
5 |
|
|
LOT5200-ST40 |
1310/1550/1625 |
40/38/37 |
1 |
5 |
|
|
LOT5200-ST42 |
1310/1550/1625 |
42/40/38 |
1 |
5 |
|
|
LOT5200-MD26 |
850/1300 |
22/26 |
1.2 |
8 |
|
|
LOT5200-SM32 |
1310/1550/850/1300 |
32/30/22/26 |
1 (SM) /1.2 (MM) |
5 (SM) / 8 (MM) |
|
|
LOT5200-SM35 |
1310/1550/850/1300 |
35/33/22/26 |
1 (SM) /1.2 (MM) |
5 (SM) / 8 (MM) |
|
|
LOT5200-SM40 |
1310/1550/850/1300 |
40/38/22/26 |
1 (SM) /1.2 (MM) |
5 (SM) / 8 (MM) |
|
|
Pulse Width |
SM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs |
||||
|
MM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs |
|||||
|
Min. Sampling Resolution |
0.05 m |
||||
|
Max. Sampling Point |
256,000 |
||||
|
Linearity |
≤0.05dB/dB |
||||
|
Loss Resolution |
0.001dB |
||||
|
Distance resolution |
0.01 m |
||||
|
Distance Accuracy |
± (1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
||||
|
Attenuation Accuracy |
±0.05 dB/dB |
||||
|
Reflectance Accuracy |
Single mode: ±2dB, Multi-mode: ±4dB |
||||
|
Connector |
FC/UPC &. SC/UPC (Standard) |
||||
Note:
(1) Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1;
The level difference between the RMS noise level and the level where near end back-scattering occurs.
(2) Event dead zone is measured with pulse width of 3ns; attenuation dead zone is measured with pulse width of 5ns.
(3) The wavelength of 1625nm in all models can be customized to 1650nm.
Standard Modules
|
Visual Fault Locator |
|
|
Wavelength |
650nm |
|
Output Power |
10mw @CW |
|
Frequency |
CW/2Hz |
|
Stabilized Laser Source Module |
|
|
Wavelength |
1310nm,1550nm |
|
Output Power |
-5dBm±2dB @CW |
|
Frequency |
CW/270Hz/1KHz/2KHz |
|
Power Meter Module |
|
|
Calibrated Wavelength |
850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm |
|
Measurement Range |
A: -70dBm - +10dBm (-60dBm - +6dBm @ 850nm) B: -50dBm - +23dBm (-40dBm - +20dBm @ 850nm) |
|
Detector Type |
InGaAs |
|
Display Resolution |
0.01dB |
|
Accuracy |
± 5% ± 0.01nW (±0.5dB@850nm) |
Optional Modules
|
Optical Connector Inspector Module - LFM |
|
|
Magnification |
400x |
|
Resolution Ratio |
0.75 µm |
|
Sensor |
1/3 decimeter 1.3 million pixels |
|
Weight（kg) |
Probe (0.14) |
|
Dimensions(cm) |
Probe (22*3*3) |
|
Work/Storage |
-10℃~+50℃ / -20℃~+70℃ |
|
USB Interface |
1.0/1.1/2.0 |
|
Tips（Standard） |
FC/SC/ST/E2000 / LC/MU UPC connector FC/SC/ST/E2000 / LC/MU UPC bulkhead |
|
Tips（Optional） |
FC/SC/ST/E2000 / LC/MU APC connector SC/FC/LC APC bulkhead |
*Specifications subject to change without notice
Standard Package
Main Unit, Lithium Battery*2, 16G Storage Card, Manual, Software, Mini USB Cable, Power Adaptor, Carrying Bag, Calibration Report
Data Sheet LOT5200 series OTDR
User Guide LOT5200 series OTDR
