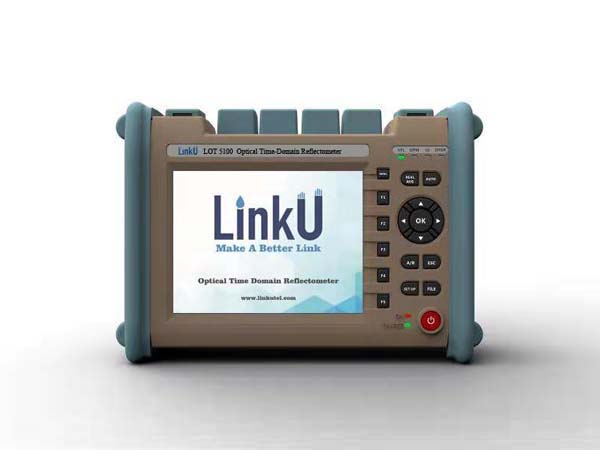

With the fast growing fiber optic network, the demand for reliable and ease-of-use field test instruments keeps increasing. LinkU LOT5100 OTDR is designed to help technicians make test quickly and accurately with simple steps. It combines various function modules in one unit, including OTDR, Optical Power Meter, stable Laser Source, Visual Fault Locator and fiber microscope (optional), all the modules are very useful in optical fiber evaluation.
Description
With the fast growing fiber optic network，the
demand for reliable and ease-of-use field test instruments keeps increasing.
LinkU LOT5100 OTDR is designed to help technicians make test quickly and accurately
with simple steps. It combines various function modules in one unit, including
OTDR, Optical Power Meter, stable Laser Source, Visual Fault Locator and fiber
microscope (optional), all the modules are very useful in optical fiber
evaluation.
Features

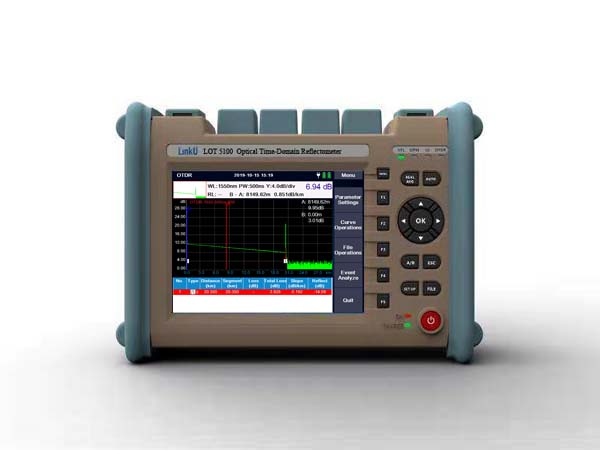

Multi-Function OTDR Testing
v Auto/Manual
testing and analysis
v Icon-display Fiber Mapper for easy interpretation of network events
v Multiple
analysis functions on testing results：
Segment/Event point return loss，Multi curves comparison
v In-Line
Measurement of PON systems through splitters
v Fault
locating, fiber length/loss/return loss measurement
v Connector/
splice/ splitter/ macro bend/ fiber-end detection
v GR-196-CORE
(.SOR) file format
v Flexible
file Naming
v Screenshot
and auto-saved
v Built-in
Power Meter, Laser Source and VFL modules

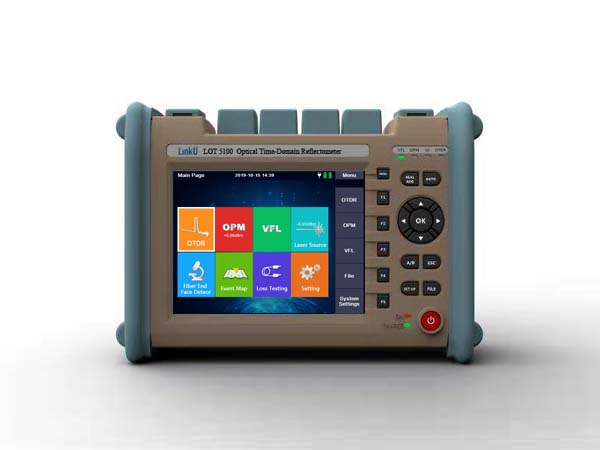

High Performance Platform
v 5.6-inch
touch screen
v Lightweight,
1.1kg
v Excellent
Man-Machine interface for easy operation
v Short dead
zone: EDZ 1m, ADZ 5m
v 16G
internal storage capacity
v Full range
of models with multiple wavelengths selectable
850/1300/1310/1550/1490/1625/1650nm (customized)
v Damp-dust-shock
proof
v Over 8
hours continuous operation
PC Software
v Multi
traces analysis
v Single/multi
traces printing in one report
v Batch
editing and printing
v Bidirectional
traces analysis
v CSV report
formats
Stabilized Laser Source Module
v Wavelength
same as the OTDR
v High
precision and easy operation
Optical Power Meter Module
v Multi-wavelength
Calibration
v High
Precision and easy Operation
Specification
|
General |
||||
|
Display |
5.6-inch TFT Touch Screen (640×480) |
|||
|
Connectivity |
USB（Type A×1，Type B×1） |
|||
|
Storage Capacity |
16 GB |
|||
|
Power Supply |
Rechargeable Li-Ion Battery: 7.4V/2500mAh * 2pcs
/AC Adapter |
|||
|
Battery Life |
10 hours continuous operation |
|||
|
Operation Temp. |
-10°C - 50°C |
|||
|
Storage Temp. |
-20°C - 70°C |
|||
|
Humidity |
0 - 95% (Non-Condensing) |
|||
|
Weight |
1.1kg（including
battery） |
|||
|
Dimensions (L×W×H) |
215×155×68mm |
|||
|
OTDR Module |
Wavelength
(±20nm) |
Dynamic Range (1)
(dB) |
EDZ (m)(2) |
ADZ(m)(2) |
|
LOT5100-SD28 |
1310/1550 |
28/26 |
1 |
5 |
|
LOT5100-SD32 |
1310/1550 |
30/32 |
1 |
5 |
|
LOT5100-SD35 |
1310/1550 |
35/33 |
1 |
5 |
|
LOT5100-SD40 |
1310/1550 |
40/38 |
1 |
5 |
|
LOT5100-MD26 |
850/1300 |
26/20 |
2 |
10 |
|
LOT5100-SM28 |
1310/1550/850/1300 |
28/26/20/26 |
1
(SM) /1.2 (MM) |
5
(SM) / 6 (MM) |
|
LOT5100-SM35 |
1310/1550/850/1300 |
35/33/20/26 |
1
(SM) /1.2 (MM) |
5
(SM) / 6 (MM) |
|
LOT5100-ST35 |
1310/1550/1625 |
35/33/32 |
1 |
5 |
|
Pulse Width |
SM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns,
1μs, 2μs, 5μs, 10μs, 20μs |
|||
|
MM: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns,
1μs, 2μs, 5μs, 10μs |
||||
|
Min. Sampling Resolution |
0.05 m |
|||
|
Max. Sampling Point |
256,000 |
|||
|
Linearity |
≤0.05dB/dB |
|||
|
Loss Resolution |
0.001dB |
|||
|
Distance resolution |
0.01 m |
|||
|
Distance Accuracy |
±
(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR
uncertainty) |
|||
|
Attenuation Accuracy |
±0.05
dB/dB |
|||
|
Reflectance Accuracy |
Single
mode: ±2dB, Multi-mode: ±4dB |
|||
|
Connector |
FC/UPC |
|||
Note:
(1) Dynamic range is measured with maximum pulse width, averaging
time is 3 minutes, SNR=1;
The level difference between the RMS noise level and the level
where near end back-scattering occurs.
(2) Event dead zone is measured with pulse width of 3ns; attenuation
dead zone is measured with pulse width of 5ns.
StandardModules
|
Visual Fault Locator |
|
|
Wavelength |
650nm |
|
Output
Power |
10mw @CW |
|
Frequency |
CW/2Hz |
|
Stabilized Laser
Source Module |
|
|
Wavelength |
1310nm,1550nm |
|
Output Power |
-5dBm±2dB
@CW |
|
Frequency |
CW/270Hz/1KHz/2KHz |
|
Power Meter
Module |
|
|
Calibrated
Wavelength |
850nm,
1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 1650nm |
|
Measurement
Range |
A: -70dBm - +10dBm (-60dBm - +6dBm @ 850nm)
B: -50dBm - +23dBm (-40dBm - +20dBm @ 850nm) |
|
Detector
Type |
InGaAs |
|
Display
Resolution |
0.01dB |
|
Accuracy |
± 5% ±
0.01nW (±0.5dB@850nm) |
Optional Modules
|
Optical Connector Inspector Module - LFM |
|
|
Magnification |
400x |
|
Resolution Ratio |
0.75 µm |
|
Sennor |
1/3 decimeter 1.3 million pixels |
|
Weight（kg) |
Probe (0.14) |
|
Dimensions(cm) |
Probe (22*3*3) |
|
Work/Storage |
-20℃~+50℃ / -30℃~+60℃ |
|
USB Interface |
1.0/1.1/2.0 |
|
Tips（Standard） |
FC/SC/ST/E2000 / LC/MU UPC connector FC/SC/ST/E2000 / LC/MU UPC bulkhead |
|
Tips（Optional） |
FC/SC/ST/E2000 / LC/MU APC connector SC/FC/LC APC bulkhead |
*Specifications subject to change without notice
Standard Package
Main Unit, Lithium Battery*2, Touch Pen, 16G Storage Card, Manual,
Software, Mini USB Cable, Power Adaptor, Carrying Bag, Calibration Report
