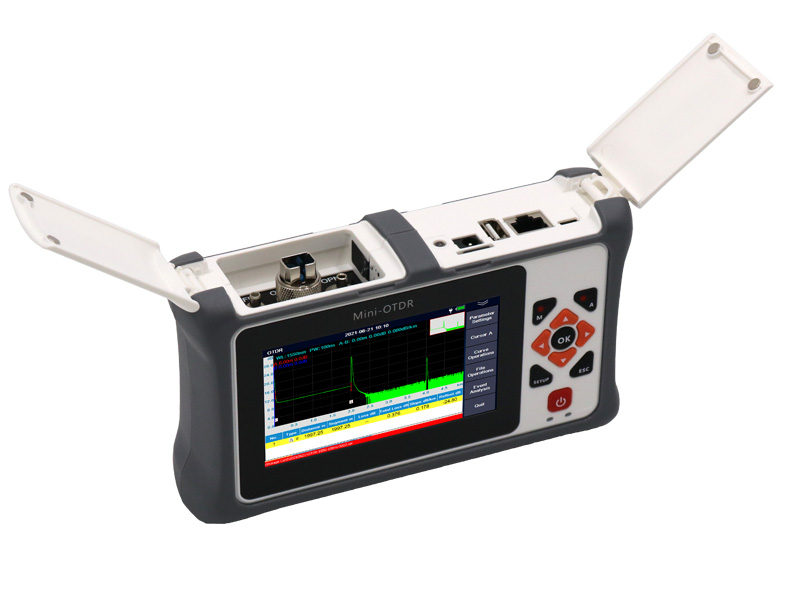

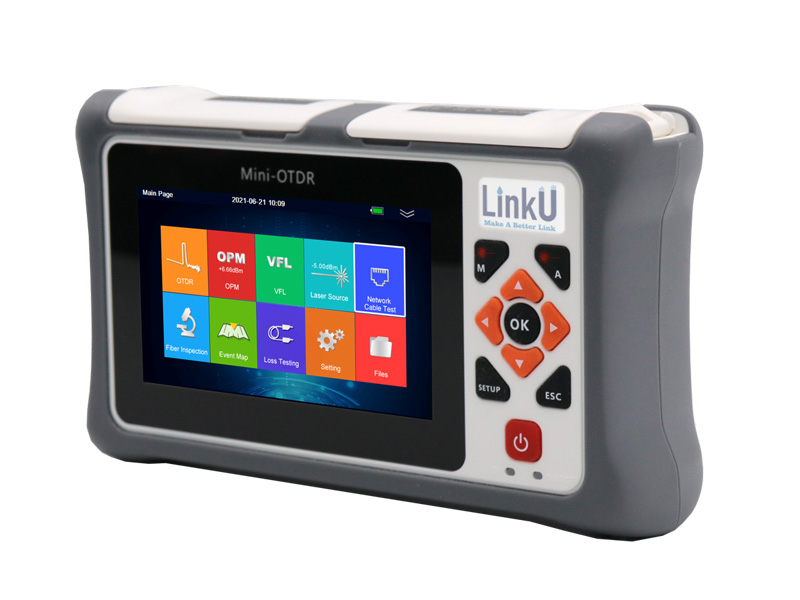

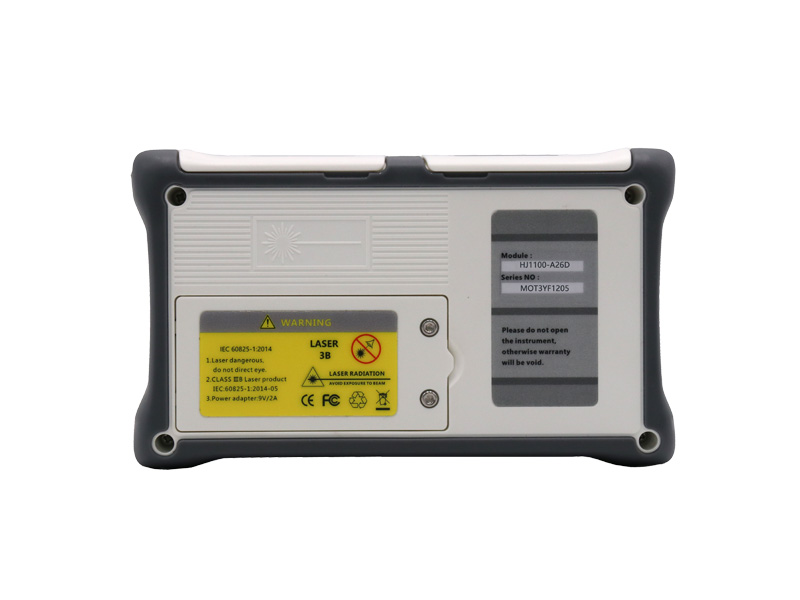

LOT-2200 Series OTDR

Nine-in-one
1. OTDR
2. OPM
3. VFL
4. LS
5. Network Cable test
6. Event Map
7. Loss test
8. Flashlight

Download1

Feature

Build-in operation system
4.3-inch full-view capacitive multi-touch screen
Standard USB interface supports a variety of external devices, such as U disk, mouse, etc.
Type C interface can be connected to the computer to read testing results
Internal storage of 1000 groups of data + SD memory card
Li-ion rechargeable battery, support charge pal charging

Nine-in-one

1. OTDR

2. OPM

3. VFL

4. LS

5. Network Cable test

6. Event Map

7. Loss test

8. Flashlight

Specifications

Model	LOT2200-SD26	LOT2200-MD26	LOT2200-SS26
Wavelength	1310/1550 nm	850/1300 nm	1310 or 1550nm (with filter)	1610 or 1625 or 1650 nm (with filter)
Dynamic Range ⁽¹⁾	26/24 dB	22/26 dB	26 dB	24 dB
EDZ ⁽²⁾	2m	3m	2m	2m
ADZ ⁽²⁾	10m	10m	10m	10m
Measuring Range	100m、500m、2km、5km、10km、20km、40km、80km、100km
Pulse Width	SM: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs MM: 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs
Sampling resolution	Minimum: 0.2m
The sampling point	64,000 points
Linearity	≤0.05dB/dB
Loss threshold	0.01dB
Loss resolution	0.001dB
Range resolution	0.01m
Range accuracy	±(0.5m+Range×3×10^-5+Sampling resolution) （Excluding refractive index error）
Memory	Internal storage of 1000 groups of data + SD memory card
OPM	Type A：+10dBm~-70dBm;Type B：+26dBm~-50dBm
OLS	The output power: -5dBm; Modulation frequency: CW / 270Hz / 1KHz / 2KHz
VFL	10mW，CW / 2Hz
Network Cable test	Support network wire sequence testing and wire alignment
Data interface	2×USB（Type A ×1，Type C ×1），SD card slot
Screen	4.3-inch TFT-LCD, Multi-Touch
Battery	3.7V/5200mAh
Temperature	Working temperature：-10℃~+55℃； Storage temperature：-20℃~+80℃
Humidity	≤95%（No condensation）
Size/Weight	175x105x45mm / 0.56kg（Contain the battery）
Standard Accessories	Power Adapter, Rechargeable Lithium Battery, FC Adaptor, USB Cable, User’s Guide, Carrying Bag
