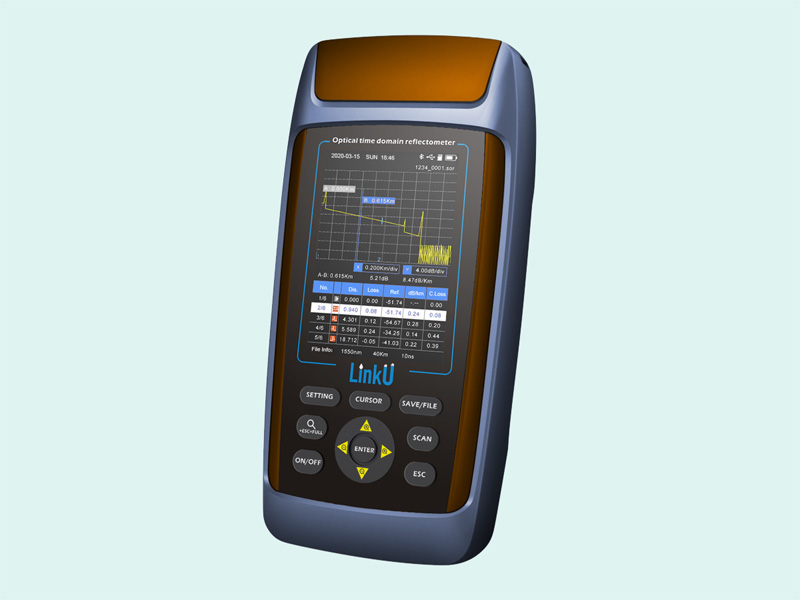

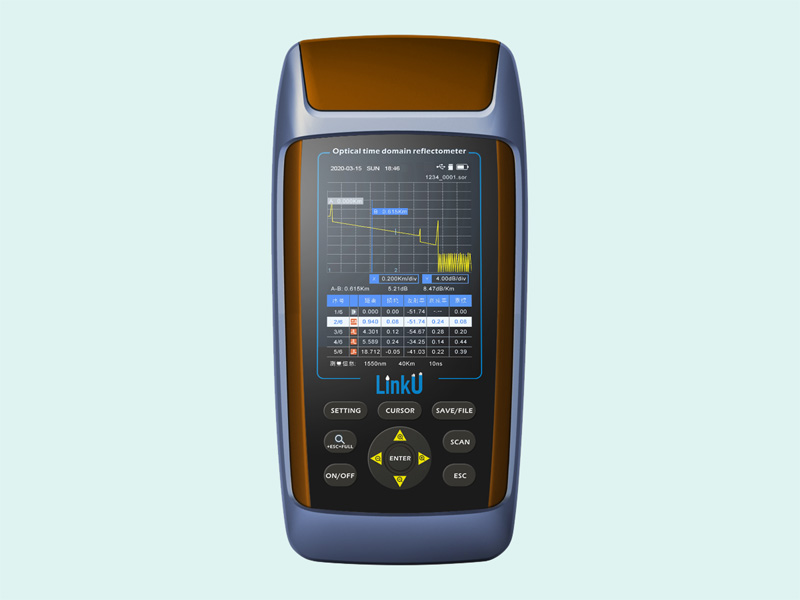

The LOT2100 OTDR is a highly cost-effective, easy-to-use diagnostic tool, specially designed for FTTH network construction and maintenance. Its user-friendly interface has been designed for simple, one-button testing.
Description
The LOT2100 OTDR is a highly cost-effective, easy-to-use diagnostic tool, specially designed for FTTH network construction and maintenance. Its user-friendly interface has been designed for simple, one-button testing.
Features
● Handheld & lightweight (0.3 Kg)
● Build-in OLS/OPM/VFL modules
● 1000 groups of test records storage
● Event Map
● 3.2-inch LCD screen
● Professional PC software for generating test report
● One-button automatic test
Specification
LOT2100 Series
Model
LOT2100
LOT2100-15F
LOT2100-16F
Wavelength (±20nm)
1310/1550
1550 with filter
1625 with filter
Dynamic Range (dB) (1)
24/22
22
22
Pulse Width
5ns/10ns/25ns/50ns/100ns/250ns/500ns/1μs/2.5μs/5us/10μs/20μs
Distance Accuracy
± (1m + measuring distance × 5×10-5+ sampling
resolution)
Attenuation Accuracy
±0.05 dB/ dB
Reflectance Accuracy
±4 dB
Event Dead Zone (EDZ) (2)
3m
Attenuation Dead Zone (ADZ) (2)
8m
OLS Module
-5dBm
OPM Module
850/1300/1310/1490/1550/1625nm , +26~-50dBm
VFL Module
1 mW @ 650nm
Data Storage
1000 records
Connectivity
USB
Power Supply
Li-ion Rechargeable Battery/ AC Adapter
Battery Life
10 hours / 20 hours (standby)
Operating Temperature
0℃ ~ 50℃
Storage Temperature
-20℃ ~ 70℃
Dimensions (L*W*H)
170mm*82mm*35mm
Standard Accessories:
SC/APC connector, USB cable, AC power
adapter, analysis software, certificate of calibration, user's guide,
carrying bag
(1) Dynamic range is measured with maximum pulse width, averaging time is 3 minutes, SNR=1;
The level difference between the RMS noise level and the level where near end back-scattering occurs.
(2) Event Dead Zone and Attenuation Dead Zone are measured with minimum pulse width;
*** Manual and Software are available for download on our website.
