Description

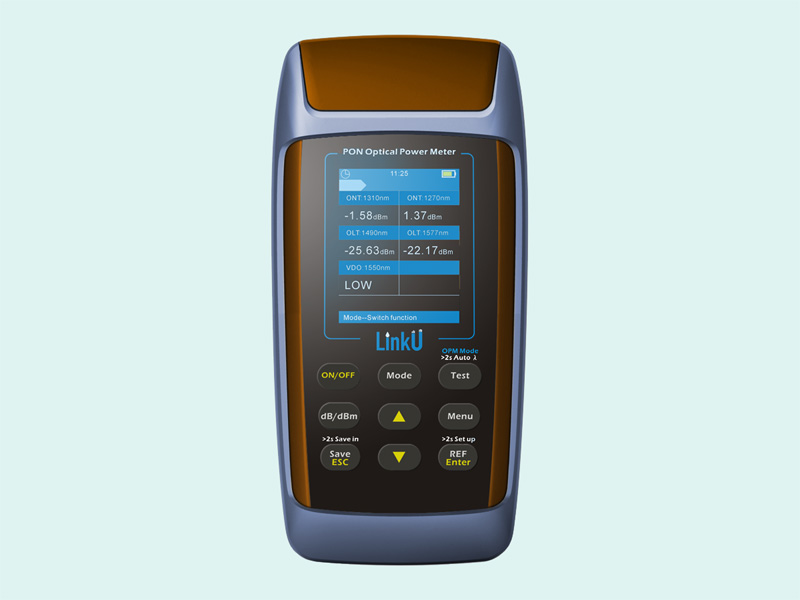

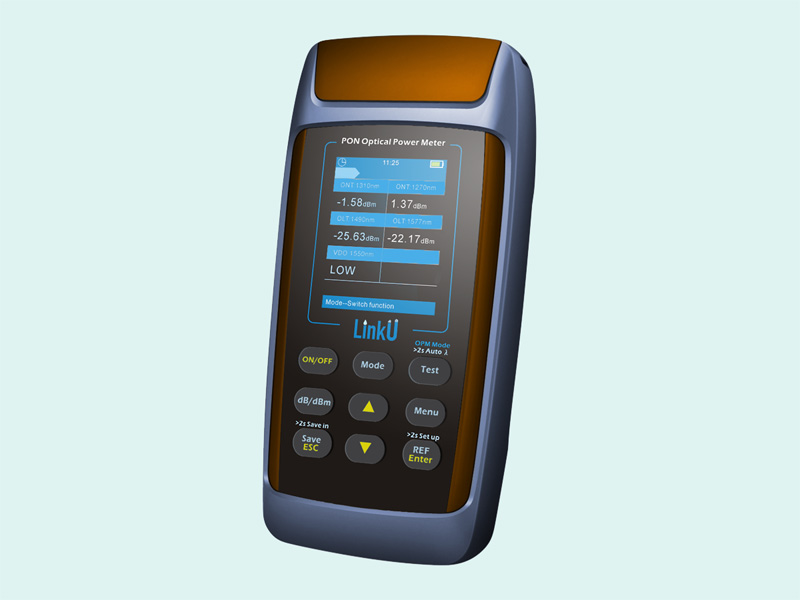

The LP-3PX XG-PON power meter is a highly cost-effective, easy-to-use diagnostic tool to measure B-PON, E-PON and G-PON and next generation high speed 10G PON such as XG-PON and 10G-EPON networks.
Features
● Compatible with both GPON &. EPON networks (up to 10G)
● Pass-through mode for simultaneous measurement and ONU/OLT verification
● USB port for data transmission
● Build-in VFL module and OPM module (optional)
● 10 thresholds setting
● Up to 1000 testing results storage
Specification
|
|
Upstream (ONT/ONU) |
Downstream (OLT) |
|||||||
|
1270nm |
1310nm |
1524~1544 |
1610nm |
1490nm |
1550nm |
1577~1578 |
1596~1603 |
||
|
Spectral Passband (nm) |
1260~1280 |
1290~1330 |
1330~1630 |
1330~1630 |
1480~1550 |
1540~1560 |
1573~1630 |
1573~1630 |
|
|
Calibration Wavelength(nm) |
1270 |
1310 |
1534 |
1610 |
1490 |
1550 |
1577 |
1600 |
|
|
Measurement Range (dBm) |
burst |
-10~+13 |
-30~+13 |
-10~+13 |
-10~+13 |
-- |
-- |
-- |
-- |
|
CW |
-35~+13 |
-30~+13 |
-35~+13 |
-35~+13 |
-50~+13 |
-45~+30 |
-50~+17 |
-50~+17 |
|
|
Maximum Safe Power |
16 dBm |
17 dBm |
30 dBm |
20 dBm |
|||||
|
Isolation |
30 dB (1) (2) (3) |
||||||||
|
Power Uncertainty |
0.5 dB (1) (5) |
||||||||
|
Return Loss |
50 dB (1) (4) |
||||||||
|
Pass-through Insertion Loss |
1.5 dB (1) |
||||||||
|
Resolution |
0.01 dB |
||||||||
(1). Typical value @ 20+3°C, SC/APC connector
(2). No isolation between 1260nm~1280nm and 1330~1630 pass-band
(3). The same input direction of different spectral bandwidth
(4). At calibrated wavelength
(5). -5dBm input power, CW
|
General Information |
|
|
Connector |
SC/APC |
|
Power Supply |
3 * AA batteries; AC/DC adaptor |
|
Operating/ Storage Temp. |
-10℃ ~ 50℃ / -20℃ ~ 70℃ |
|
Dimension(mm) |
170*82*35 (L*W*H) |
|
VFL Module (optional) |
|
|
Output Wavelength (nm) |
650 |
|
Output Power (mW) |
10 |
|
Modulation Frequency |
CW / 2Hz |
|
|
|
|
OPM Module (optional) |
|
|
Calibrated wavelength (nm) |
850/1300/1310/1490/1550/1625 |
|
Measuring Range (dBm) |
-70 to +10 / -50 to +30 (optional) |
|
Accuracy (dB) |
±0.2 (1)(2) |
|
Connector |
SC/APC |
|
Standard Accessories |
|
SC/UPC adapter, carrying bag, Manual |
