Description

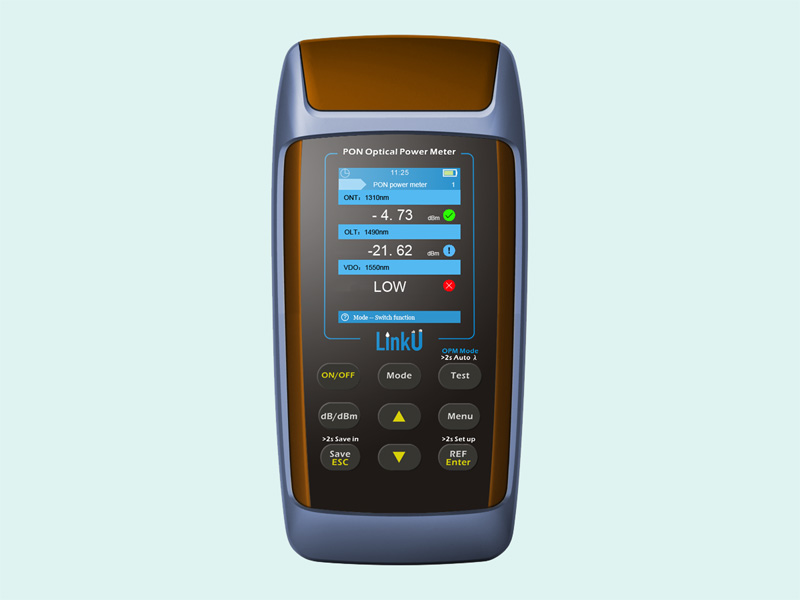

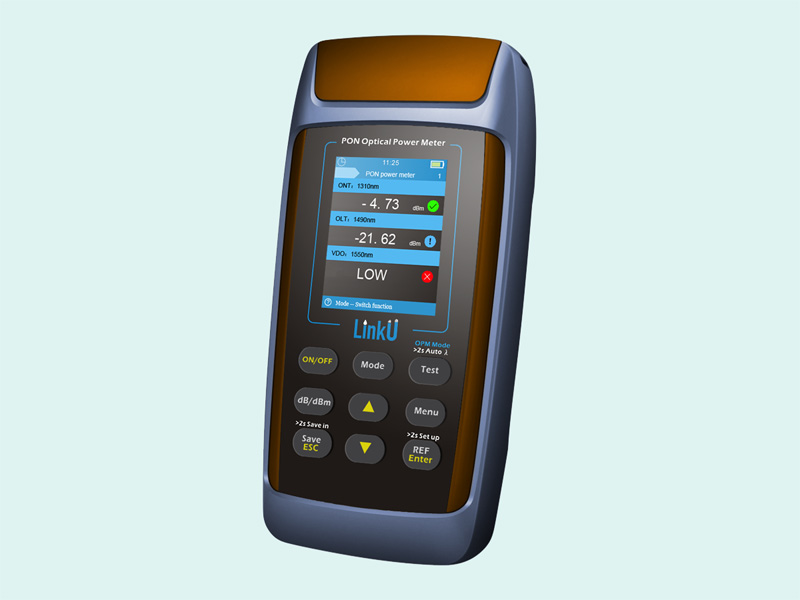

The LP-3P is designed for the FTTX PON (APON, BPON, EPON and GPON) network installation and maintenance. It can directly show the status of pass or fail by setting threshold.
Features
● Pass/Fail testing with warning tone
● Two testing ports with “ONU” & “OLT/Video”
● Filtered measurements with distinct power display
● Self-calibration
● Auto power-off with sleeping mode, battery indicator
● LCD display with back-light
● 10 thresholds setting
● Up to 1000 testing results storage
● USB port for data transmission
● Up to 10 hours continuous operation
Specification
|
Model # |
LP-3P |
||
|
Calibration Wavelength |
1310nm |
1490nm |
1550nm |
|
Measurement Range |
-40dBm~+10dBm (continuous) -30dBm~+10dBm (burst signal) |
-50dBm~+10dBm |
-50dBm~+30dBm |
|
Spectral Passband |
1260nm~1360nm 1480nm~1550nm 1539~1565nm |
1480nm~1500nm |
1530~1570nm |
|
Max. Inputting Power |
15dBm |
15dBm |
30dBm |
|
Isolation |
N/A |
30dB (to 1550nm) |
30dB (to 1490nm) |
|
Accuracy* |
±0.5dB (±1dB for burst signal) ±0.35db±10nW ±0.35db±1nW |
||
|
Resolution |
0.01dB |
||
|
Pass Through Attenuation |
<1.5 dB |
||
|
ORL |
>50 dB |
||
|
Connector |
SC/APC or Customized |
||
|
Operating/ Storage Temperature |
-10℃ ~ 50℃ / -20℃ ~ 70℃ |
||
|
Power supply |
3 * AA batteries; AC/DC adaptor |
||
|
Dimension (mm) |
170*82*35 (L*W*H) |
||
|
Standard Accessories: |
|||
|
SC/APC adapter, carrying bag, Manual |
|||
|
Optional Items |
|||
|
SC/UPC or FC/UPC or FC/APC, VFL Module (650nm; 10mW, CW&.2Hz) |
|||
* @ 20+3°C, CW, SC/PC connector, -10dBm
