Description

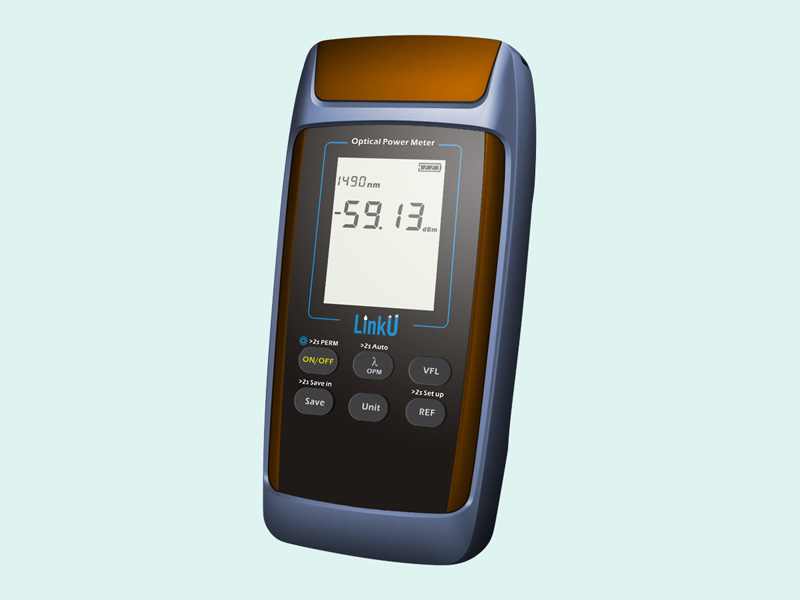

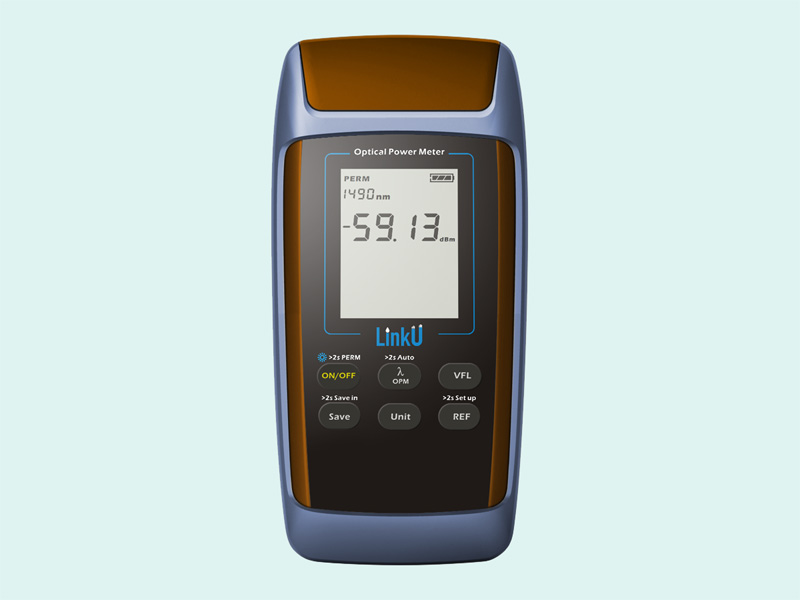

Optical Power Meter is used to test optical power, loss, continuity and faults on all types of fiber optic systems. LP-3 series OPM provides high accuracy and simplicity of test. Working with Linku's LS-3 series OLS, it can automatically recognize the wavelength to be tested to reduce the possibility of wrong operation.
Features
● Auto-wavelengths recognition（working with LS-3 series OLS）
● Auto power-off , battery indicator
● LCD display with back-light
● Reference value setting
● Up to 1000 testing results storage
● USB port for data transmission (LP-3TV&3CV)
● Build-in 10mW VFL module(LP-3TV&3CV)
● Up to 160 hours continuous operation (Type)
Specification
|
Model # |
LP-3T |
LP-3C |
LP-3TV |
LP-3CV |
|
|
Calibrated Wavelength |
850/980/1300/1310/1490/1550/1625 nm |
|
|||
|
Detector Type |
InGaAs |
|
|||
|
Measuring Range |
-70 to +10dBm @1550nm |
-50 to +26dBm @1550nm |
-70 to +10dBm @1550nm |
-50 to +26dBm |
|
|
Resolution |
0.01dB(>-60dBm) |
0.01dB(>-40dBm) |
0.01dB(>-60dBm) |
0.01dB(>-40dBm) |
|
|
Accuracy* |
±0.2dB ±0.35db±10nW ±0.35db±1nW |
|
|||
|
Connector |
FC/PC &. 2.5mm universal |
|
|||
|
Modulation Freq. Detection |
270Hz, 1KHz, 2KHz |
|
|||
|
VFL Module |
N/A |
650 nm ; 10mW ; CW&.2Hz |
|
||
|
USB port for data transmission |
N/A |
Available |
|
||
|
Operating/ Storage Temperature |
-10℃ ~ 50℃ / -20℃ ~ 70℃ |
|
|||
|
Power supply |
3 * AA batteries; AC/DC adaptor |
|
|||
|
Dimension (mm) |
170*82*35 (L*W*H) |
|
|||
|
Standard Accessories: |
|||||
|
SC&.FC Adapter, Carrying bag, Manual(CD) |
|||||
|
Optional Items |
|||||
|
ST Adapter, FC to LC Hybrid Adapter, AC/DC adapter |
|||||
* @ 20+3°C, CW, FC/PC connector, -10dBm
