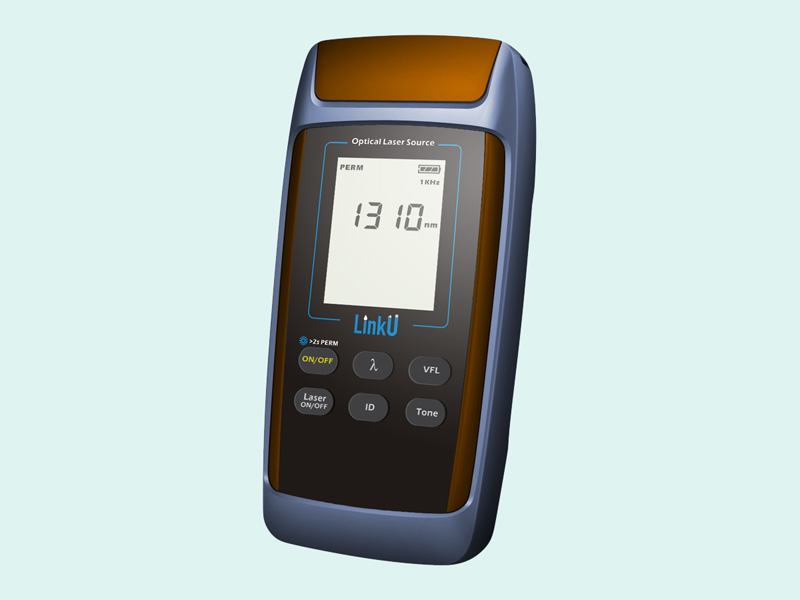

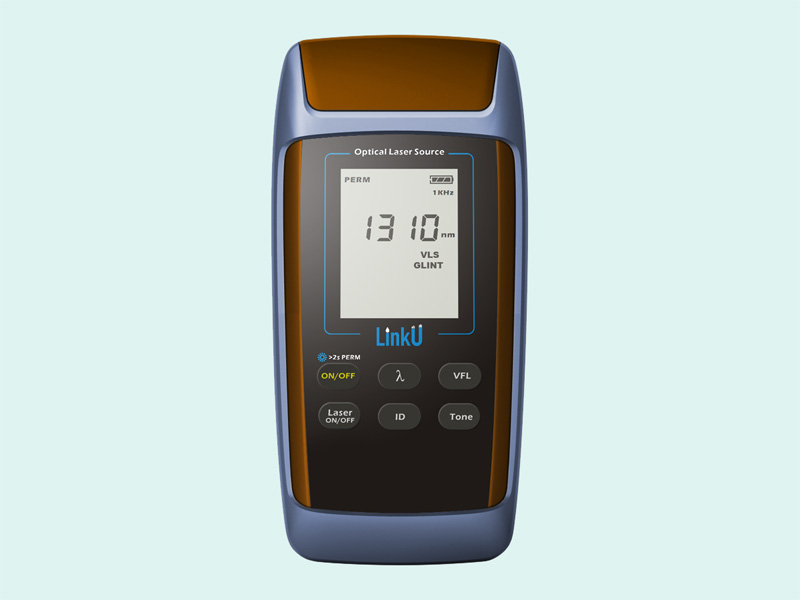

LS-3 series Optical Laser Source offers excellent stability and portability for accurate fiber optic testing. By using wavelength-identification digital encrypted protocol, the LS-3 series laser source enable the LP-3 series optical power meter to automatically recognize the wavelength to be tested.
Description
LS-3 series Optical Laser Source offers excellent stability and portability for accurate fiber optic testing. By using wavelength-identification digital encrypted protocol, the LS-3 series laser source enable the LP-3 series optical power meter to automatically recognize the wavelength to be tested.
Features
Specification
Model #
LS-3M
LS-3S
LS-3T
LS-3Q
LS-3QS
Output Wavelength (nm)
850/1300nm
1310/1550nm
1310/1490/1550
Port1:850/1300nm
Port2:1310/1550nm
Port1:1310/1550nm
Port2:1490/1625nm
Laser Type
LD
Output Stability *
Short term (15 mins): ±0.05dB@1490 ; ±0.2dB@850/1300/1310nm/1550/1625nm
Long term (5 hrs.): ±0.2dB@1490 ; ±0.8dB@850/1300/1310nm/1550/1625nm
Central Wavelength
±20
nm
Spectral Width
3
nm
Modulation Frequency
270 Hz, 1KHz, 2KHz
Output Power
≥-6dBm
@1310/1550/1490/1625nm ;≥-10dBm
@850/1300nm
Operating/Storage Temperature
-10℃ ~ 50℃ / -20℃ ~ 70℃
Power supply
3
* AA Batteries; 3*AA Rechargeable Batteries; AC/DC adaptor (USB Port)
Dimensions (L*W*H)
170mm*82mm*35 mm
Standard
Accessories:
SC/UPC
Adapter, Carrying Bag, User’s Guide
Optional
Items:
SC/APC or FC/UPC or FC/APC Adapter, FC to LC Hybrid Adapter,
AC/DC adapter
* @ 20+3°C, CW, FC connector
Documents
Data Sheet LS-3 series Laser Source
