Features
l High strength yarn member;
l Small outer diameter, lightweight, flame-retardant, soft and easy to strip;
l High quality tight buffered or loose tube;
l 1.2mm--4.0mm optional (Simplex);
l G652D, G657A, G657B; OM1, OM2, OM3 and OM4 fiber available;
Applications
l Used as building to building connecting cable;
l Deployed along the wall/ceiling, between layers and in
conduits;
l Usedas pigtails, movable connectors and patch cord for
communication equipment.
Features
l High strength yarn member;
l Small outer diameter, lightweight, flame-retardant, soft and
easy to strip;
l High quality tight buffered or loose tube;
l 1.2mm--4.0mm optional (Simplex);
l G652D, G657A, G657B; OM1, OM2, OM3 and OM4 fiber available;
|

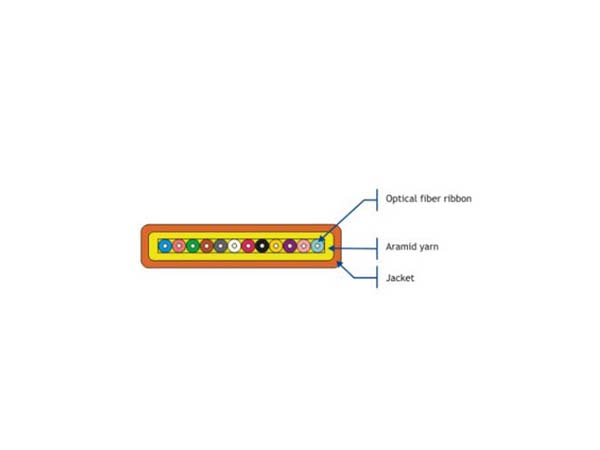

Flat Ribbon Cable |
|||||
|
Outer Diameter (mm) |
1.6*3.3 |
1.8*3.7 |
2.0*4.1 |
2.8*5.7 |
|
|
Weight (kg/km) |
5.7 |
6.7 |
8.2 |
13.2 |
|
|
Max.
tensile Strength (N) |
Short-term |
160 |
160 |
200 |
200 |
|
Long-term |
80 |
80 |
100 |
160 |
|
|
Min. Bending Radius (mm) |
Dynamic |
20H |
|||
|
Static |
10H |
||||
|
Max. Crush Resistance (N/100mm2) |
1000 |
||||
|
Operating Temperature |
-20 ~ +70℃ |
||||
2.
Specifications are subject to change due to different material and structure.
