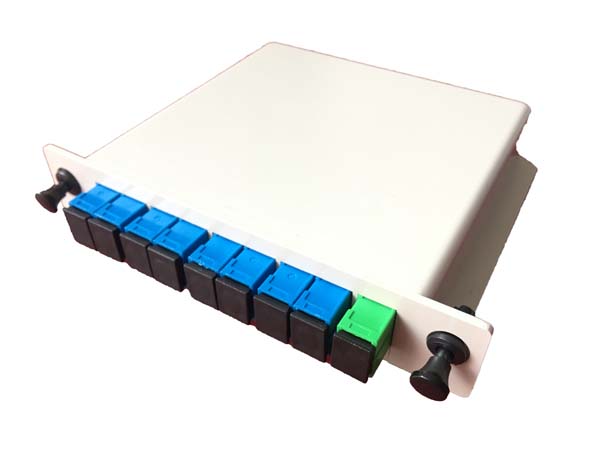

PLC splitter is used to merge or separate optical signals at minimum loss. It works at any wavelength over the entire spectrum of 1260~1650nm and is widely used in optical networks. LinkU’s module type PLC splitter can be easily placed in indoor terminal box, ODF frame or optical fiber distribution box directly.
PLC splitter is used to merge or separate optical signals at minimum loss. It works at any wavelength over the entire spectrum of 1260~1650nm and is widely used in optical networks. LinkU’s module type PLC splitter can be easily placed in indoor terminal box, ODF frame or optical fiber distribution box directly.
l Compact design
l Low insertion loss and low PDL
l High reliability
l High channel counts
l Wide operating and temperature range
l Customized packaging & configuration
l Telcordia GR1209/1221 qualifications
|
1×N PLCS (With connector) Optical parameters |
|||||||
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Operation wavelength (nm) |
1260~1650 |
||||||
|
Insertion loss (dB) Max |
4.1 |
7.7 |
11.0 |
14.0 |
17.2 |
21.3 |
|
|
Return loss (dB) Min |
APC |
55 |
55 |
55 |
55 |
55 |
55 |
|
UPC |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
PDL (dB) Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
|
|
Directivity (dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
|
Pigtail length (m) |
1.2(±0.1) or customer specified |
||||||
|
Fiber type |
SMF-28e with 2.0 / 3.0mm tight buffered fiber |
||||||
|
Operation temperature (°C) |
-20~65 |
||||||
|
Storage temperature (°C) |
-40~85 |
||||||
|
Dimension (L×W×H) (mm) |
Module |
128×101×25 |
128×101×51 |
130×101×102 |
130×101×206 |
||
|
LGX Box |
158×130×29 |
158×130×58 |
158×130×87 |
158×130×174 |
|||
|
2×N PLCS (With connector) Optical parameters |
|||||||
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
|
Operation wavelength (nm) |
1260~1650 |
||||||
|
Insertion loss (dB) Max |
4.4 |
8.1 |
11.5 |
14.5 |
17.8 |
21.8 |
|
|
Return loss (dB) Min |
APC |
55 |
55 |
55 |
55 |
55 |
55 |
|
UPC |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
PDL (dB) Max |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
0.4 |
|
|
Directivity (dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
|
Pigtail length (m) |
1.2(±0.1) or customer specified |
||||||
|
Fiber type |
SMF-28e with 2.0/3.0mm tight buffered fiber |
||||||
|
Operation temperature (°C) |
-20~65 |
||||||
|
Storage temperature (°C) |
-40~85 |
||||||
|
Dimension (L×W×H) (mm) |
Module |
128×101×25 |
128×101×51 |
130×101×102 |
130×101×206 |
||
|
LGX Box |
158×130×29 |
158×130×58 |
158×130×87 |
158×130×174 |
|||
