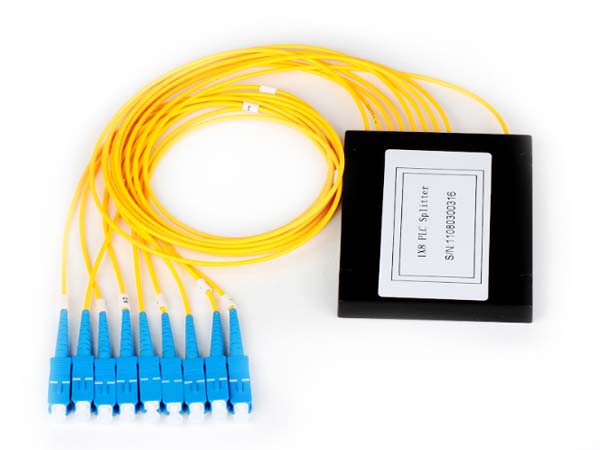

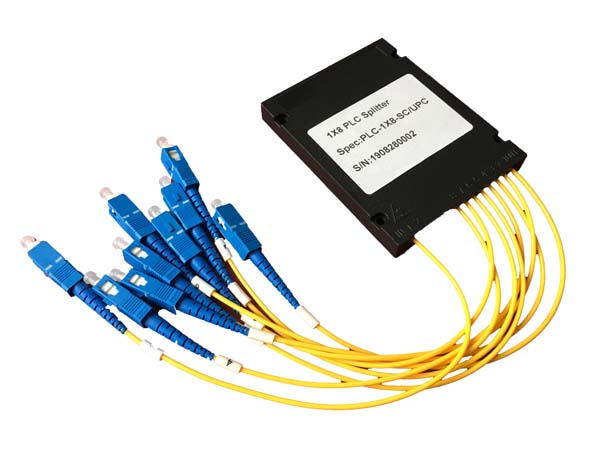

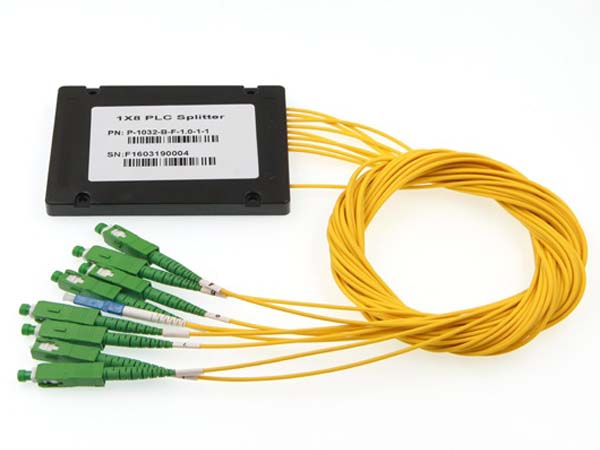

PLC splitter is used to merge or separate optical signals at minimum loss. It works at any wavelength over the entire spectrum of 1260~1650nm and is widely used in optical networks. LinkU's cassette type PLC splitter can easily be placed into optical fiber distribution box, optical fiber junction box, etc.
l Compact design
l Low insertion loss and low PDL
l High reliability
l High channel counts
l Wide operating and temperature range
l Customized packaging and configuration
l Telcordia GR1209/1221 qualifications
|
1×N PLCS (With connector) Optical parameters |
|||||||
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
|
Operation wavelength (nm) |
1260~1650 |
||||||
|
Insertion loss (dB) Max |
4.1 |
7.4 |
10.5 |
13.8 |
17.1 |
20.4 |
|
|
Return loss (dB) Min |
APC |
55 |
55 |
55 |
55 |
55 |
55 |
|
UPC |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
PDL (dB) Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
|
|
Directivity (dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
|
WDL (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
|
Pigtail length (m) |
1.2(±0.1) or customer specified |
||||||
|
Fiber type |
SMF-28e with 2.0/3.0mm tight buffered fiber |
||||||
|
Operation temperature (°C) |
-20~65 |
||||||
|
Storage temperature (°C) |
-40~85 |
||||||
|
Dimension (L×W×H) (mm) |
100×80×10 |
120×80×18 |
140×114×18 |
140×114×18 |
|||
|
2×N PLCS (With connector) Optical parameters |
|||||||
|
Parameters |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
|
Operation wavelength (nm) |
1260~1650 |
||||||
|
Insertion loss (dB) Max |
4.4 |
7.7 |
10.8 |
14.1 |
17.4 |
20.7 |
|
|
Return loss (dB) Min |
APC |
55 |
55 |
55 |
55 |
55 |
55 |
|
UPC |
50 |
50 |
50 |
50 |
50 |
50 |
|
|
PDL (dB) Max |
0.2 |
0.2 |
0.3 |
0.4 |
0.4 |
0.4 |
|
|
Directivity (dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
|
WDL (dB) |
|
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
|
Pigtail length (m) |
1.2(±0.1) or customer specified |
||||||
|
Fiber type |
SMF-28e with 2.0/3.0mm tight buffered fiber |
||||||
|
Operation temperature (°C) |
-20~65 |
||||||
|
Storage temperature (°C) |
-40~85 |
||||||
|
Dimension (L×W×H) (mm) |
100×70×9 |
120×80×18 |
140×114×18 |
140×114×18 |
|||
