Active Products

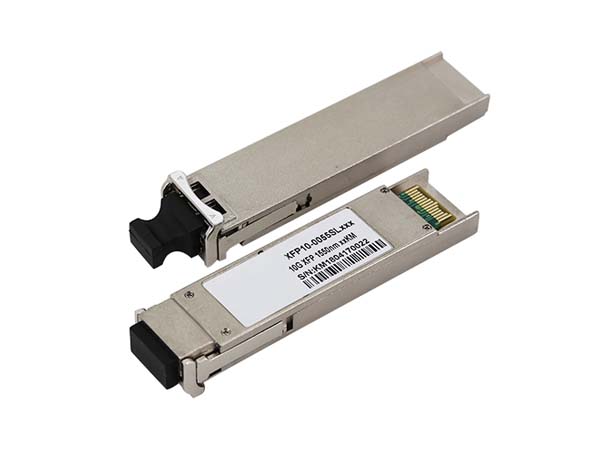

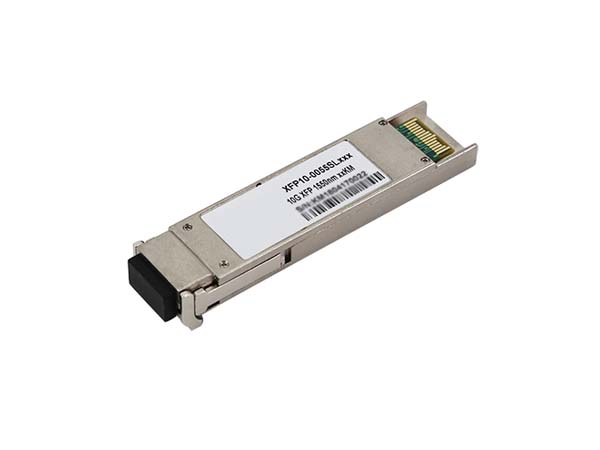

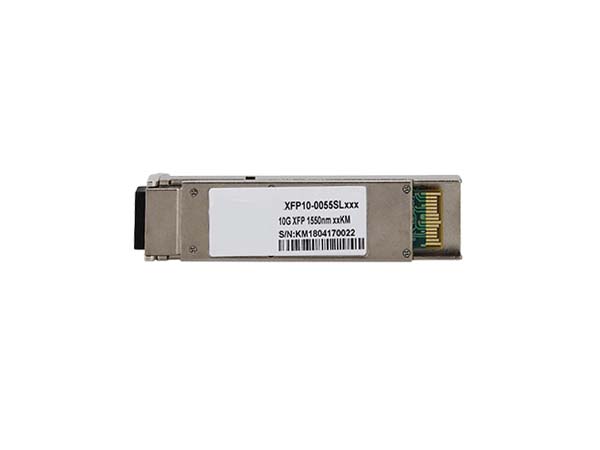

10Gb/s XFP Transceivers

Features

● Operating data rate up to 11.3Gbps

● Laser Class 1 compliant

● Compliant to XFP MSA

● Operating Temperature: 0 ~+70℃



Leave A Message


Applications



●  SONET OC-192

●  SDH STM 64 at 9.953Gbps

●  10G Ethernet

●  10G Fiber Channel

●  10GE over G.709 at 11.09Gbps

●  OC192 over FEC at 10.709Gbps





Features



●  Operating data rate up to 11.3Gbps

●  Laser Class 1 compliant

●  Compliant to XFP MSA

●  Operating Temperature: 0 ~+70℃



Ordering Information





Part No.

Description

Data Rate

Wavelength

Distance

Operating Temp.

Tx Power
(dBm)

Rx Sensitivity
(dBm)

LX-100

XFP LR

10.3Gbps

1310nm DFB

10Km

0℃-70℃

-3~ +1

-14

LX-400

XFP ER

10.3Gbps

1550nm EML

40Km

0℃-70℃

-1~ +4

-16

LX-800

XFP ZR

10.3Gbps

1550nm EML +APD

80Km

0℃-70℃

0~ +5

-24

LX-4XX

XFP DWDM

10.3Gbps

DWDM

40Km

0℃-70℃

0~ +5

-16

LX-8XX

XFP DWDM

10.3Gbps

DWDM+APD

80Km

0℃-70℃

0~ +5

-24

LX-220

XFP DWDM

10.3Gbps

TX1270nm/RX1330nm

20Km

0℃-70℃

-3~ +1

-14

LX-221

XFP DWDM

10.3Gbps

TX1330nm/RX1270nm

20Km

0℃-70℃

-3~ +1

-14
