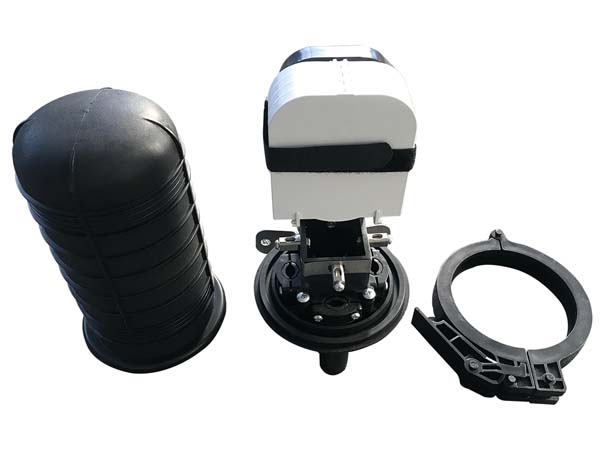

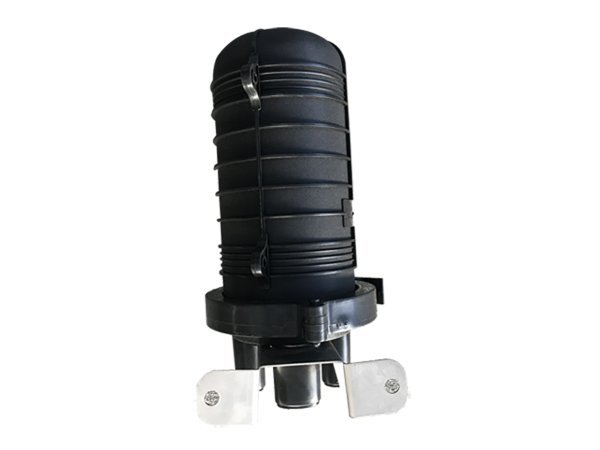

LSC-4802

Description:

Fiber Optic Splice Closure, is an essential passive component for fiber optic cable management in fiber optic network of backbone, LAN and access network. Fiber Optic Splice Closure is widely used to protect optical fiber splices, store slack fiber optic cables, distribute fiber optic cables, etc. in straight through and branching applications either in the outside plant or indoor buildings. FOSC can be installed in aerial, pole mounting, wall mounting, direct buried and duct mounting.



Generally, there are two types to face different situations: Dome (Vertical) Type and Horizontaltype.  Dome type is more suitable for the application on accessing layer.The input and output ports are at the bottom of the closure. Horizontal type is more suitable for backbone application.The input and output are on the both sides.



LINKU provide various shapes closure of both types. All the closures we offered are fully mechanical sealing structure which ensure a great sealing performance. High quality ABS material also ensures the durability no matter the closure is in air, in pipeline or buried underground.



Features:

• Easy access to installation, maintenance and future expansions.
• Excellent sealing against water ingress and harsh environment
• Hinged splice trays for easy expansion without disturbing spliced fibers.
• Compatible with standard normal fiber cable types

Model	LSC-4802
Size (mm)	300 * Φ178
Installation	Overhead / Pipeline mounting Holding rod mounting
Sealing Type	Shrinkable Seal

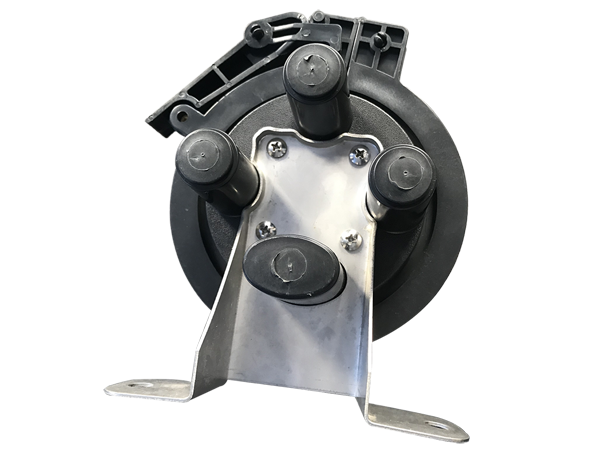

Cable Ports	2 in / 3 out
Max Cable Diameter	Φ21mm
Capacity	12 to 48 cores
