Features
● Water-proof design with IP65 Protection level
● Integrated with splice cassette and cable management system
● Easy to maintain and extend the capacity
● Fiber bend radius control more than 40mm
● Suitable for the fusion splice or mechanical splice
1. Environmental requirement
Working temperature: -40°C ~+85°C
Relative humidity: ≤ 85% (+30°C)
Atmospheric pressure: 70KPa ~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥56dB
Life of insertion and extraction : ＞1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC);
IR≥2x104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V (DC) /min, no puncture, no flashover; U≥3000V
Applications
● Fiber cable management for the connection of distribution cables&. drop cables at the user access point in fiber optic network
● Various designs for indoor or outdoor, wall-mounted or pole-mounted installation
Features
● Water-proof design with IP65 Protection level
● Integrated with splice cassette and cable management system
● Easy to maintain and extend the capacity
● Fiber bend radius control more than 40mm
● Suitable for the fusion splice or mechanical splice
1. Environmental requirement
Working temperature: -40°C ~+85°C
Relative humidity: ≤ 85% (+30°C)
Atmospheric pressure: 70KPa ~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥56dB
Life of insertion and extraction : ＞1000 times
3. Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2x104MΩ/500V(DC);
IR≥2x104MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V (DC) /min, no puncture, no flashover; U≥3000V
|

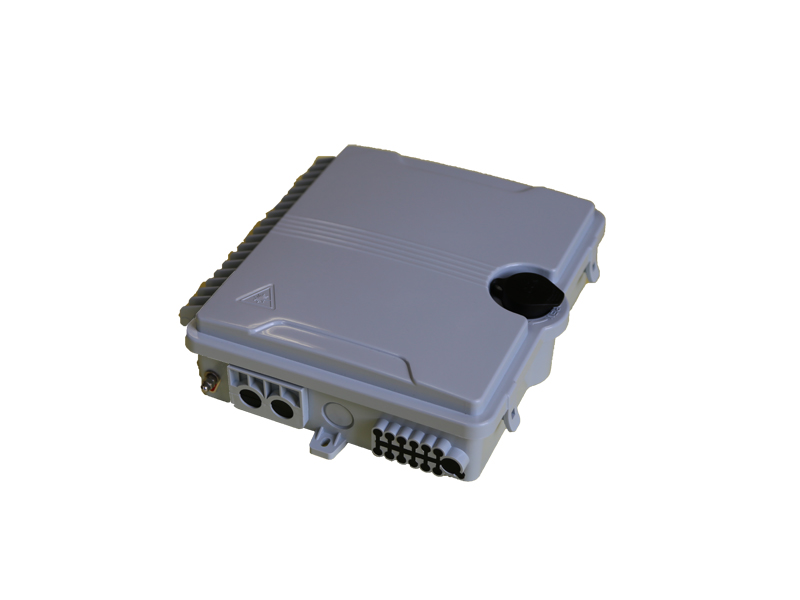

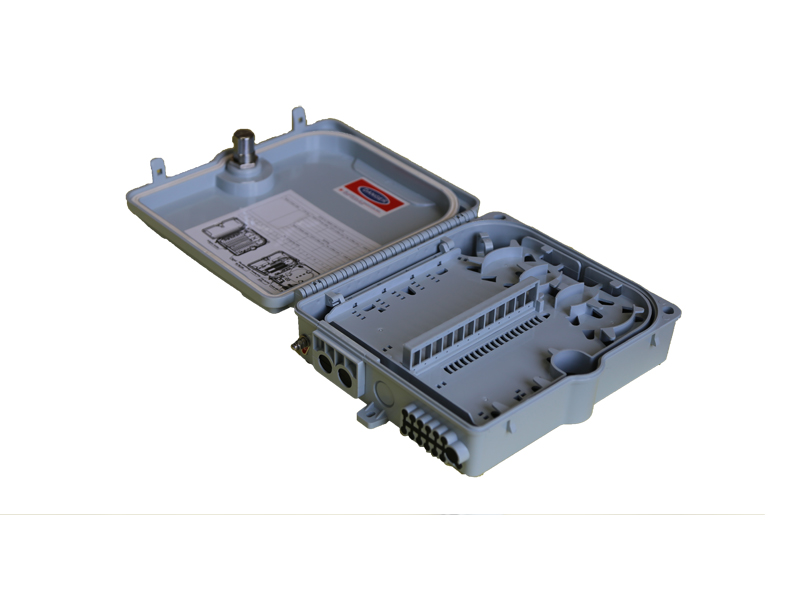

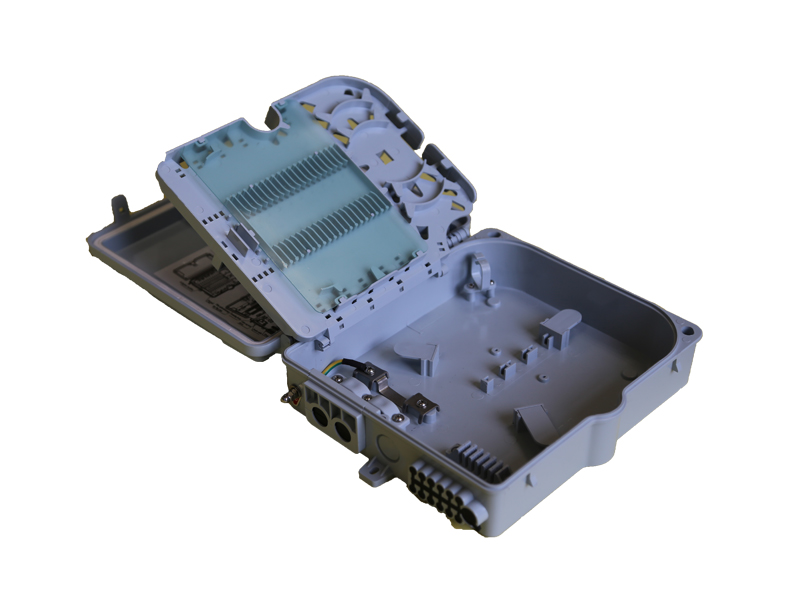

Model |
LDB-1201 |
|
Material |
PC + ABS |
|
Size (mm) |
225*200*65 |
|
Max Capacity |
SC:12ports LC :24ports |
|
Empty Weight |
840g |
|
Loaded Weight |
960g |
