Features
l High
resolution optics and 3D visualization
l Variety of
connector holders with high accuracy class
l Fast
measurements, less than 500ms
l High
accurate and stable measurement
l The
optimized algorithm enhances the robustness
l No external
power is required – USB Power supply
l Available
for USB communication with PC and data saving
l Analysis
system software
Description

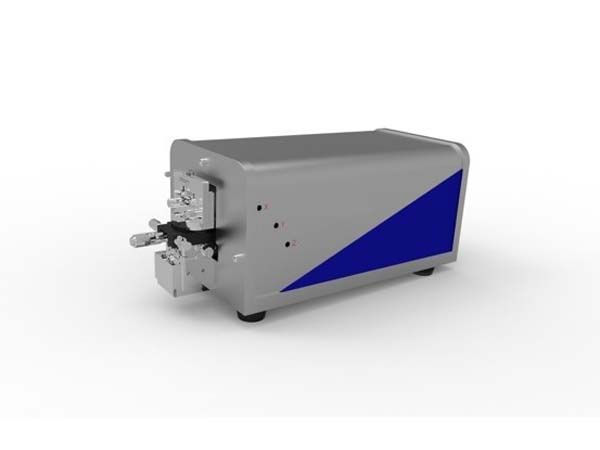

LSD-1S is a 3D interferometer for inspection

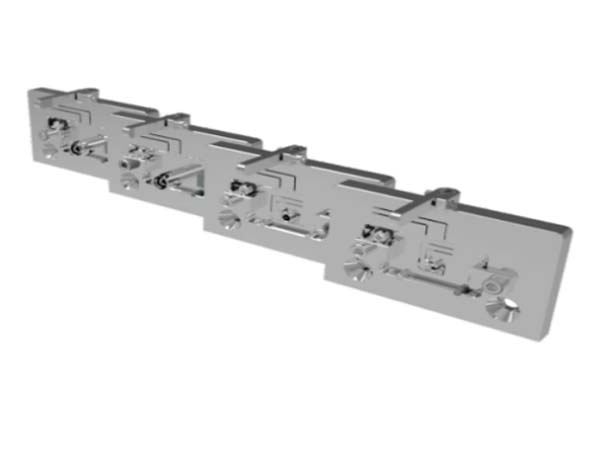

of single fiber connector end face. It comes with a variety of connector
holders including ST, FC, SC, LC, MU, etc. And it’s suitable for PC and APC
connectors. With the “Chksys” analytical software, it may supply accurate and
stable measurement results.
Features
v High resolution optics and 3D
visualization
v Variety of connector holders with
high accuracy class
v Fast measurements, less than 500ms
v High accurate and stable measurement
v The optimized algorithm enhances the
robustness
v No external power is required – USB
Power supply
v Available for USB communication with
PC and data saving
v Analysis system software

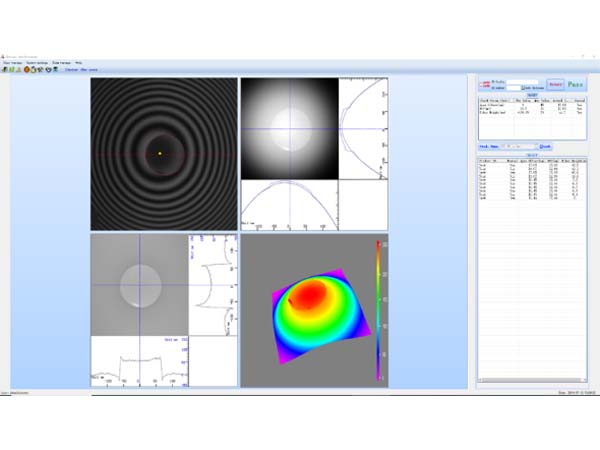

ChkSys Analysis System
v High resolution image, each of 4 images zoom in
v 3D image 360 degree browsing
v User registration with different operating
authorization
v Custom threshold parameters
v Variety measure mode setting
v Measurement results editing and
storage
v Generate report with data statistics
and analysis
Specification
|
Measurement Range |
Repeatability |
Reproducibility |
|
|
Apex Offset (um) |
0 ~ 500 |
±0.5 |
±1.5 |
|
Radius of Curvature (mm) |
3 ~ ∞ |
±0.01 |
±0.02 |
|
Fiber Height (nm) |
-150 ~ +150 |
±1.0 |
±2.0 |
|
APC angle (deg) |
7 ~ 9 |
±0.01 |
±0.02 |
|
APC Key Error (deg) |
±1.0 |
±0.01 |
±0.02 |
Standard Package：
LSD-1S Main Device, ChkSys Software, USBKEY,
USB Cable, FC/SC/LC Connector Holder, Carrying Case,
Calibration Certificate, Warranty
card
