Features
l Compact and
ruggedized, easy to carry
l Excellent
waterproof and dustproof performance
l Auto Purge
Valve for changes in altitude and temperature
l Non-metal
construction will not corrode or conduce electricity
Description

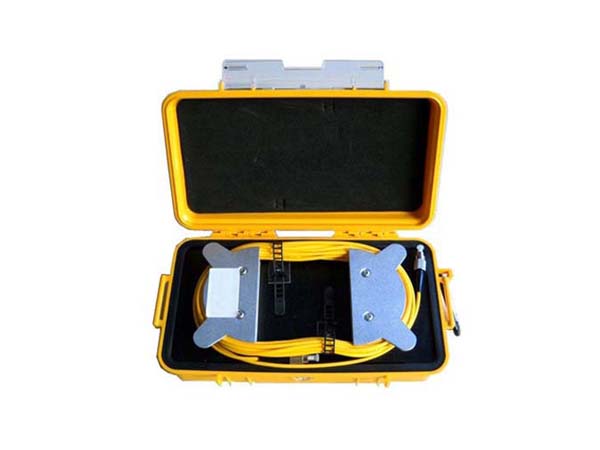

The OTDR Launch Fiber
box is used with Optical Time Domain Reflectometers (OTDR's) to help minimize
the effects of the OTDR's launch pulse on measurement uncertainty. Available in
many different configurations and fiber lengths.
Features
l Compact and
ruggedized, easy to carry
l Excellent
waterproof and dustproof performance
l Auto Purge
Valve for changes in altitude and temperature
l Non-metal
construction will not corrode or conduce electricity
Specification
|
|
|
|
Fiber Type |
G.657A/G.652D (MM can be
customized) |
|
Typical Loss |
<0.5dB @ 1310nm for
1,000 meters |
|
Connector Type |
FC/SC/LC selectable |
|
Polishing Type |
APC/UPC selectable |
|
Box Material |
SR Polypropylene |
|
Color |
yellow |
|
Dimension |
23.8(L) x 14.1(W) x
6.7(H)cm |
|
Weight |
0.75kg / 0.35kg (without
fiber) |
|
Operating Temperature |
-40~+55°C |
Order
information
Sample：LFB-A-SC-AS-010 ----Launch Fiber Cable Box, G652D,
SC/UPC-SC/APC,1.0KM
Fiber Type
Connector 1 & 2
Length
A
SM G652D
SC
SC/UPC
005
0.5KM
B
SM G657A
AS
SC/APC
010
1.0KM
D
SM G657B
LC
LC/UPC
015
1.5KM
P
OM1
AL
LC/APC
020
2.0KM
Q
OM2
FC
FC/UPC
XXX
Customized
R
OM3
AF
FC/APC
S
OM4
ST
ST/UPC
AT
ST/APC
CX
Customized
