Feature
l Stainless steel or galvanized steel self-supporting
l Loose tubes with jelly compound inside to protect the
cladding fiber
l Corrugated steel tape laminated with plastic at both sides
bonding to PE sheath

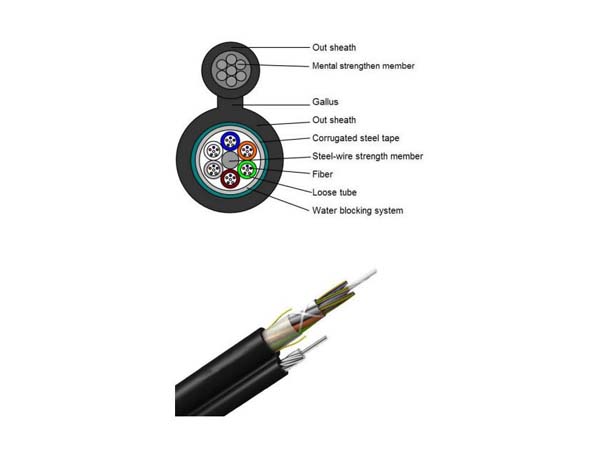

l The cross-section in figure 8 shape
l Up to 144 fibers
Application
l Outdoor, Long distance, self-supporting Aerial
l area network communication.
Feature
l Stainless steel or galvanized steel self-supporting
l Loose tubes with jelly compound inside to protect the
cladding fiber
l Corrugated steel tape laminated with plastic at both sides
bonding to PE sheath
l The cross-section in figure 8 shape
l Up to 144 fibers
Ordering
Information (Outdoor Fiber Cable)
Sample：GYTA-36-A-020
---- GYTA Cable, 36F, G652D, 2KM
|
Cable Type |
|
CoreNum |
|
Fiber Type |
|
Length |
||
|
GYTA |
|
04 |
|
A |
SM G652D |
|
010 |
1.0KM |
|
GYTS |
|
08 |
|
B |
SM G657A |
|
015 |
1.5KM |
|
GYFTY |
|
12 |
|
D |
SM G657B |
|
020 |
2.0KM |
|
…… |
|
24 |
|
G |
SM G655 |
|
030 |
3.0KM |
|
XXXXX |
|
48 |
|
P |
OM1 |
|
XXX |
Customized |
|
|
|
…… |
|
Q |
OM2 |
|
|
|
|
|
|
144 |
|
R |
OM3 |
|
|
|
|
|
|
288 |
|
S |
OM4 |
|
|
|
|
|
|
|
|
X |
Customized |
|
|
|
Note. More
structures of cable could be customized, please contact us for more detailed
information.
