Features
l High strength yarn member;
l Small outer diameter, lightweight, flame-retardant, soft and easy to strip;
l High quality tight buffered or loose tube;
l 1.2mm--4.0mm optional (Simplex);
l G652D, G657A, G657B; OM1, OM2, OM3 and OM4 fiber available;
Applications
l Used as building to building connecting cable;
l Deployed along the wall/ceiling, between layers and in
conduits;
l Usedas pigtails, movable connectors and patch cord for
communication equipment.
Features
l High strength yarn member;
l Small outer diameter, lightweight, flame-retardant, soft and
easy to strip;
l High quality tight buffered or loose tube;
l 1.2mm--4.0mm optional (Simplex);
l G652D, G657A, G657B; OM1, OM2, OM3 and OM4 fiber available;
Specifications
|

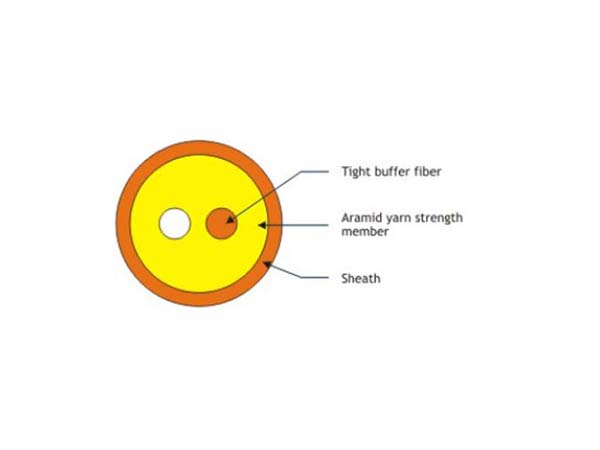

Round Duplex Cable |
|||
|
Outer Diameter (mm) |
3.0 |
5.0 |
|
|
Weight (kg/km) |
7.6 |
19 |
|
|
Max.
tensile Strength (N) |
Short-term |
80 |
160 |
|
Long-term |
40 |
80 |
|
|
Min. Bending Radius (mm) |
Dynamic |
20D |
|
|
Static |
10D |
||
|
Max. Crush Resistance (N/100mm2) |
500 |
||
|
Operating Temperature |
-20 ~ +70℃ |
||
Note：1.Different materials
and cable structures could be customized;
2. Specifications
are subject to change due to different material and structure.
