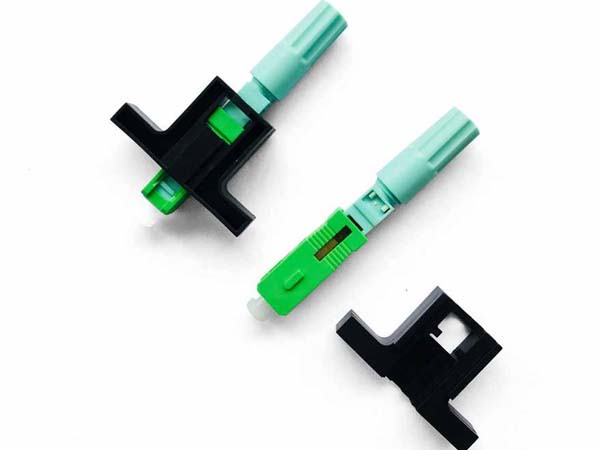

Field optical fast connector is a kind of innovative on-site terminal connector. It contains factory pre-installed fiber, pre-polished ceramic ferrule and a mechanical connection mechanism.
Specifications
|
Fiber type |
Single mode |
|
|
Insertion Loss |
≤ 0.25 dB |
|
|
Return Loss |
UPC |
≥ 50 dB |
|
APC |
≥ 60 dB |
|
|
Repeatability (500 Mating Times) |
ΔI.L. ≤ 0.35 dB |
|
|
Operating Temperature |
-20 ~ +75℃ |
|
|
Storage Temperature |
-40 ~ +85℃ |
|
Ordering Information
Sample：FCN11C01 ---- SC/UPC, Type C01
|
Connector |
|
Type No. |
|
PC/APC |
||||
|
1 |
SC |
|
C01 |
C01 |
|
UPC |
1 |
|
|
2 |
LC |
|
C02 |
C02 |
|
APC |
2 |
|
|
3 |
FC |
|
…… |
…… |
|
|
|
|
|
4 |
ST |
|
XXX |
Customized |
|
|
|
|
