Features
1. Provide stable attenuation from 1 to Max. 25 dB with 1dB increments
2. Performance according to IEC61754
Features
l Provide stable attenuation from 1 to Max. 25dB with 1dB increments
l Performance according to IEC61754
l Compliance with RoHS
Specifications
|
Connector Type |
FC/SC/ST/LC, E9/125 |
|
Polishing mode |
UPC/APC |
|
Wavelength |
1310/1550nm |
|
Return Loss(1) |
≥50dB(UPC), ≥60dB(APC) |
|
Attenuation Tolerance(2) |
±0.5dB@1~5dB; ±0.75dB@6~10dB; ±10% @11~25dB |
|
Operating Temp. |
-20 ~ +70℃ |
① Measurement procedure acc. to IEC61300-3-6
② Measurement procedure acc. to IEC61300-3-4
Ordering Information

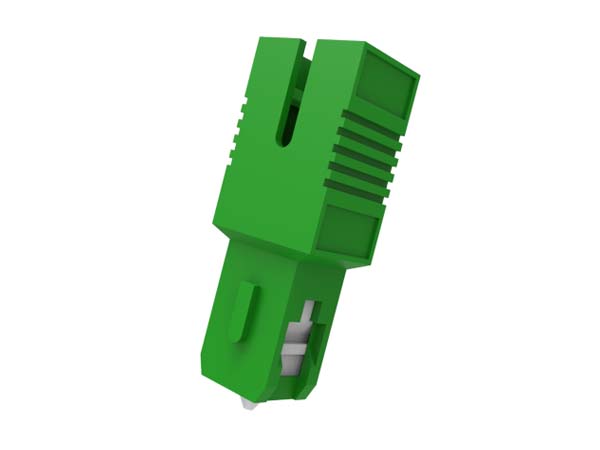

Sample：CMA12305 ---- SC Attenuator, SM/APC, Green, 5dB
|
Connector Type |
|
Mode |
|
Color |
|
Attenuation |
|
||||||
|
1 |
SC |
|
1 |
SM/UPC |
|
1 |

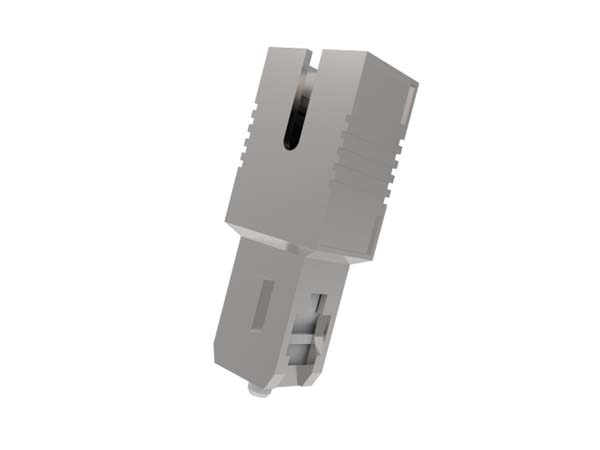

Metal |
|
05 |
5dB |
|
|
|
|
2 |
LC |
|
2 |
SM/APC |
|
2 |

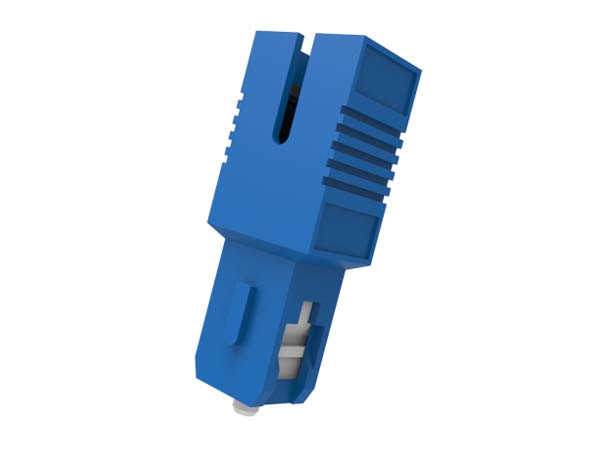

Blue |
|
10 |
10dB |
|
|
|
|
3 |
FC |
|
|
|
|
3 |
Green |
|
15 |
15dB |
|
|
|
|
4 |
ST |
|
|
|
|
4 |
Customized |
|
20 |
20dB |
|
|
|
|
|
|
|
|
|
|
|
|
|
XX |
Customized |
|
|
|
