Features
● Hot pluggable
● High cost effective to Fiber optics solution
● Low power consumption
● Enhanced EMI suppression
● Differential impedance 100ohm
● Temperature Range: 0~ 70 °C
● Customizable EEPROM mapping for cable signature
● RoHS compliant
Applications
● Switches, Servers, Routers and Hub
● Data Center & Storage area networks
● High performance computing
● Telecommunication and wireless infrastructure
● Test and measurement equipment
Features
● Hot pluggable
● High cost effective to Fiber optics solution
● Low power consumption
● Enhanced EMI suppression
● Differential impedance 100ohm
● Temperature Range: 0~ 70 °C
● Customizable EEPROM mapping for cable signature
● RoHS compliant
WHOLE SERIES
● 10Gb/s SFP+ to SFP+

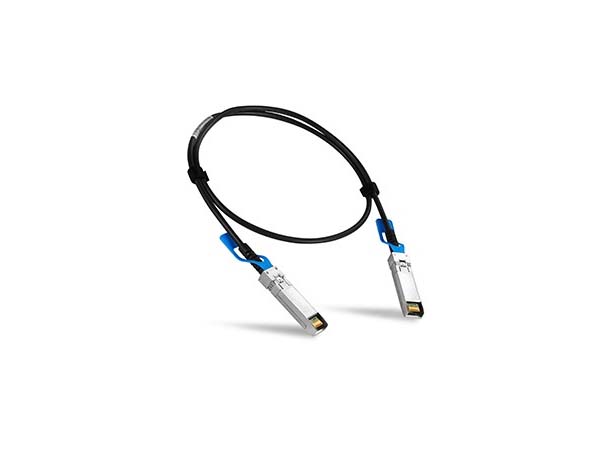

● 25Gb/s SFP28 to SFP28

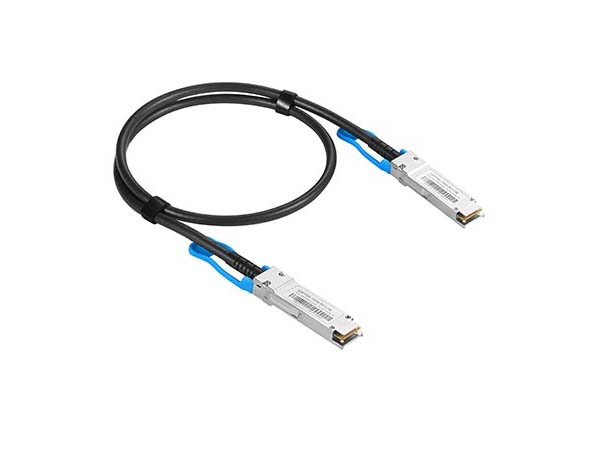

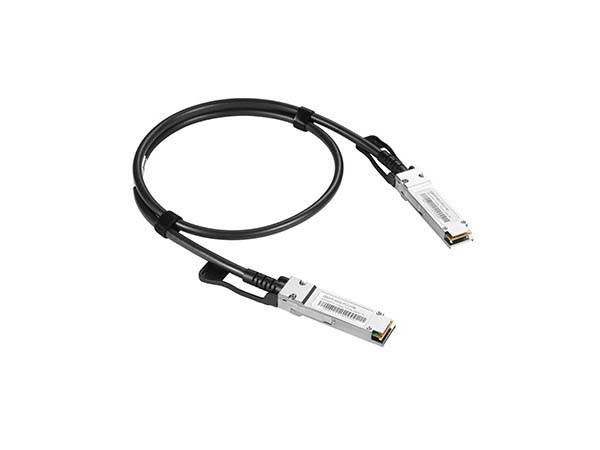

● 40Gb/s QSFP+ to QSFP+

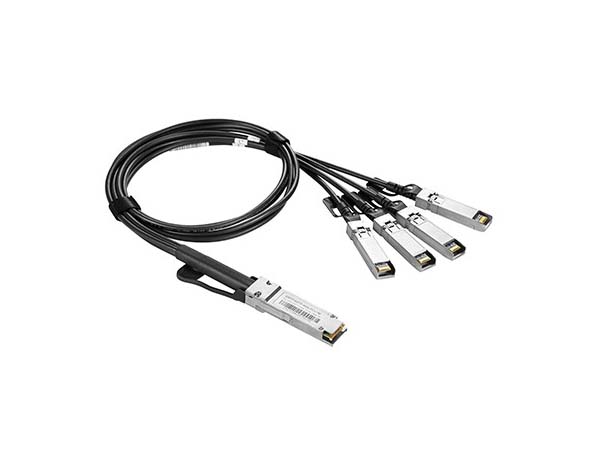

● 40Gb/s QSFP+ to 4* 10Gb/s SFP+ (Breakout)
● 40Gb/s QSFP+ to 8* LC (Breakout)
● 56Gb/s QSFP+ to QSFP+
● 100Gb/s QSFP28 to QSFP28

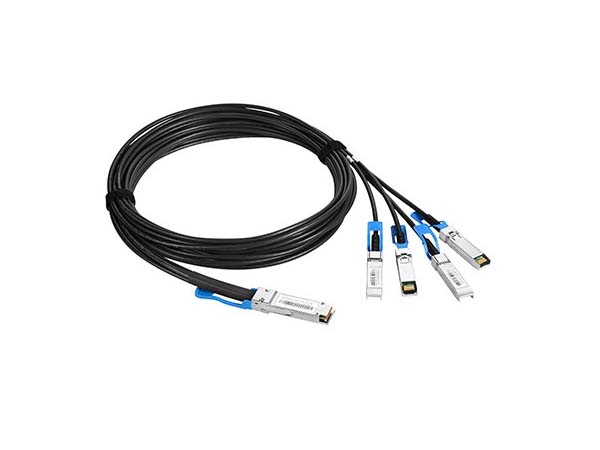

● 100Gb/s QSFP28 to 4* 25Gb/s SFP28 (Breakout)
● Other customer order model
Ordering Information
Part No. DXX – XX – XXX [ / XXX ]
Sample: DDS – 10 – 010 / OM3
( Type code -- Data rate -- Length -- Type of fiber )
Part No.
Data Rate
Length Range
Guage AWG
Operating Temp.
10G SFP+ to SFP+
DDS-10-XXX
10G
0.5~15M
24/26/28/30
0℃~70℃
25G SFP28 to SFP28
DDS-25-XXX
25G
0.5~7M
26/30
0℃~70℃
40G QSFP+ to QSFP+
DDQ-40-XXX
40G
0.5~7M
24/26/28
0℃~70℃
40G QSFP+ to 4* 10G SFP+
DQS-40-XXX
40G
0.5~7M
24/30
0℃~70℃
56G QSFP+ to QSFP+
DDQ-56-XXX
56G
0.5~7M
26/30
0℃~70℃
100G QSFP28 to QSFP28
DDQ-100-XXX
100G
0.5~5M
26/30
0℃~70℃
100G QSFP28 to 4* 25G SFP28
DQS-100-XXX
100G
0.5~5M
26/28/30
0℃~70℃
※ The length of cable can be customized.
Common length : 0.5/1/2/3/5/7/10M
Maximum of the length bases on the data rate and type of cable.
