Features
● Reliable 850nm VCSEL and PIN photonic devices
● Hot-pluggable cable ends
● Single 3.3V power supply
● Low-power consumption: <1.3W @QSFP+ end, <1W @SFP+ ends
● Management interface and DDM through I2C
● Commercial temperature: 0~ 70 °C
● RoHS-6 Compliant
● 10G/40G/100Gt Ethernet
● InfiniBand QDR, DDR, SDR
● Cost effective link solution
● System cascade Applications
● System Internal data link solution
● Proprietary high speed, high density data transmission
● Switch and router high speed backplane interconnect
● High performance computing, server and data storage
Features
● Reliable 850nm VCSEL and PIN photonic devices
● Hot-pluggable cable ends
● Single 3.3V power supply
● Low-power consumption: <1.3W @QSFP+ end, <1W @SFP+ ends
● Management interface and DDM through I2C
● Commercial temperature: 0~ 70 °C
● RoHS-6 Compliant
WHOLE SERIES

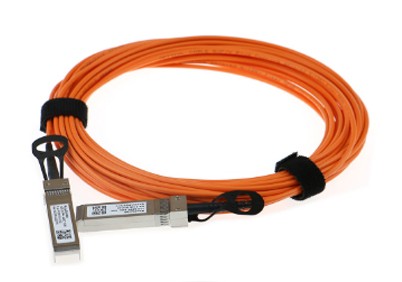

● 10Gb/s SFP+ to SFP+
● 25Gb/s SFP28 to SFP28

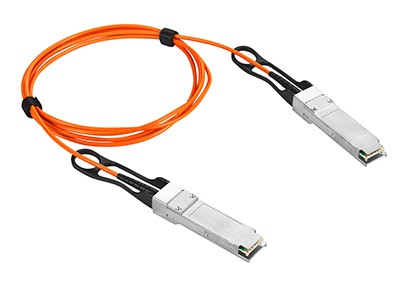

● 40Gb/s QSFP+ to QSFP+

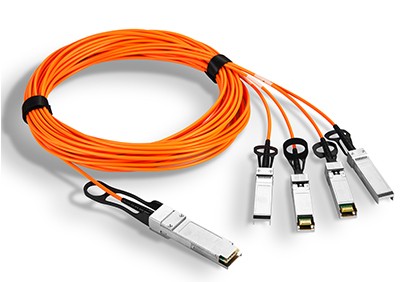

● 40Gb/s QSFP+ to 4* 10Gb/s SFP+ (Breakout)
● 40Gb/s QSFP+ to 8* LC (Breakout)
● 56Gb/s QSFP+ to QSFP+
● 100Gb/s QSFP28 to QSFP28
● 100Gb/s QSFP28 to 4* 25Gb/s SFP28 (Breakout)
● Other customer order model
Ordering Information
Part No. AXX – XX – XXX [ / XXX ]
Sample: ADS – 10 – 010 / OM3
( Type code -- Data rate -- Length -- Type of fiber )
Part No. |
Data Rate |
Length Range |
Connector & fiber |
Operating Temp. |
10G SFP+ to SFP+ |
||||
ADS-10-XXX |
10G |
0.5~300M |
SFP+/MMF |
0℃~70℃ |
25G SFP28 to SFP28 |
||||
ADS-25-XXX |
25G |
0.5~100M |
SFP28/MMF |
0℃~70℃ |
40G QSFP+ to QSFP+ |
||||
ADQ-40-XXX |
40G |
0.5~50M |
QSFP+/MMF |
0℃~70℃ |
40G QSFP+ to 4* 10G SFP+ |
||||
AQS-40-XXX |
40G |
0.5~50M |
QSFP+/SFP* /MMF |
0℃~70℃ |
40G QSFP+ to 8* LC |
||||
AQL-40-XXX |
40G |
0.5~50M |
QSFP+/LC/MMF |
0℃~70℃ |
56G QSFP+ to QSFP+ |
||||
ADQ-56-XXX |
56G |
0.5~50M |
QSFP+/MMF |
0℃~70℃ |
100G QSFP28 to QSFP28 |
||||
ADQ-100-XXX |
100G |
0.5~50M |
QSFP28/MMF |
0℃~70℃ |
100G QSFP28 to 4* 25G SFP28 |
||||
AQS-100-XXX |
100G |
0.5~50M |
QSFP28/SFP28/MMF |
0℃~70℃ |
※ The length of cable can be customized.
Common length : 0.5/1/2/3/5/7/10/15/20/30/50/75/100M
Maximum of the length bases on the data rate and type of cable.
