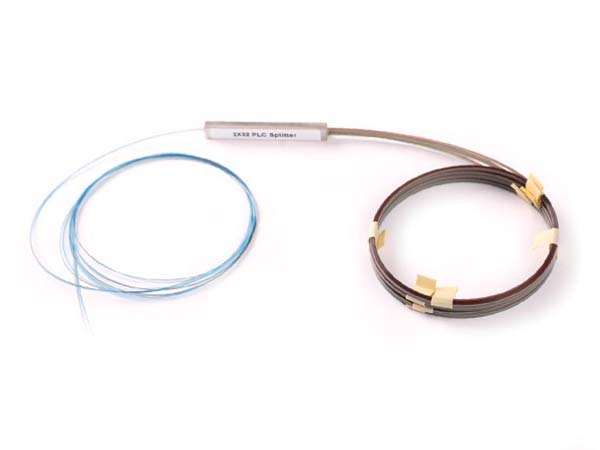

PLC splitter is used to merge or separate optical signals at minimum loss. It works at any wavelength over the entire spectrum of 1260~1650nm and is widely used in optical networks. LinkU’sbare fiber PLC splitter is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes.
PLC splitter is used to merge or separate optical signals at minimum loss. It works at any wavelength over the entire spectrum of 1260~1650nm and is widely used in optical networks. LinkU’sbare fiber PLC splitter is especially suitable for tiny room installation and can be easily placed into different types of terminal boxes and distribution boxes.
l Compact design
l Low insertion loss and low PDL
l High reliability
l High channel counts
l Wide operating and temperature range
l Customized packaging and configuration
l Full Telcordia GR1209/1221 qualifications
|
1×N PLCS (Without connector) Optical parameters |
||||||
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operation wavelength (nm) |
1260~1650 |
|||||
|
Insertion loss (dB) Max |
4.0 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Return loss (dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
PDL (dB) Max |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
|
Directivity (dB) Min |
55 |
55 |
55 |
55 |
55 |
55 |
|
WDL (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Pigtail length (m) |
1.2(±0.1) or customer specified |
|||||
|
Fiber type |
250um bare fiber |
|||||
|
Operation temperature (°C) |
-40~85 |
|||||
|
Storage temperature (°C) |
-40~85 |
|||||
|
Dimension (L×W×H) (mm) |
40×4×4 |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
60×12×4 |
|
2×N PLCS (Without connector) Optical parameters |
||||||
|
Parameters |
|
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Operation wavelength (nm) |
1260~1650 |
|||||
|
Insertion loss (dB) Max |
|
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
|
Loss uniformity (dB) Max |
|
1.2 |
1.5 |
1.8 |
2.0 |
2.0 |
|
Return loss (dB) Min |
|
55 |
55 |
55 |
55 |
55 |
|
PDL (dB) Max |
|
0.2 |
0.3 |
0.4 |
0.4 |
0.4 |
|
Directivity (dB) Min |
|
55 |
55 |
55 |
55 |
55 |
|
WDL (dB) |
|
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
|
Pigtail length (m) |
1.2(±0.1) or customer specified |
|||||
|
Fiber type |
250um bare fiber |
|||||
|
Operation temperature (°C) |
-40~85 |
|||||
|
Storage temperature (°C) |
-40~85 |
|||||
|
Dimension (L×W×H) (mm) |
|
50×4×4 |
50×4×4 |
60×7×4 |
60×7×4 |
60×7×4 |
