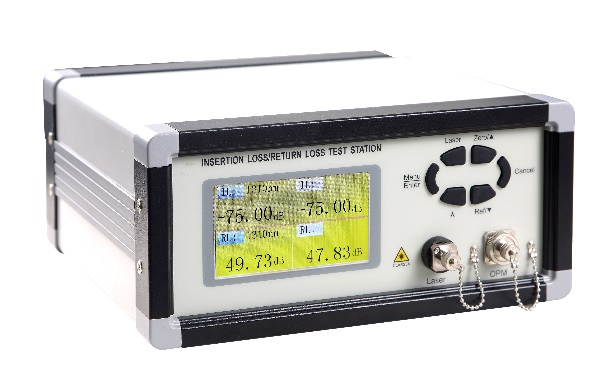

LB5500
is a high performance loss test station that is
designed specially for Optical Passive Components production Test and Lab Test.
It combines three different working modes as a return loss meter, optical power
and loss meter and a stable laser source in one test station.
Feature
l High accuracy, wide dynamic ranger and weak signal
l Leakage design of optical power meter module and light
l Removable optical connector set design, easy to clean
l
l The latest software, easy using and self-calibration
SPECIFICATIONS
|
Type |
LB5500 |
|
|
Optical Return Loss Test |
||
|
Wavelength |
1310/1550nm(SM) 1490nm optional |
850/1300nm(MM) |
|
Optic Connector |
FC/APC |
|
|
|
0 ~ 75dB |
|
|
Output Stability of laser source |
0.05dB(1 hour@25°C) |
|
|
Measurement accuracy |
0.25dB |
|
|
Resolution |
±0.3dB |
|
|
Optical Power and Insertion Loss Test |
||
|
|
800~1700nm |
|
|
Calibrated wavelength |
850/1300/1310/1550nm, more other wavelengths can be optional |
|
|
Optic Connector（Power Meter） |
Interchangeable FC/SC/ST/ |
|
|
Photo detector |
InGaAs |
|
|
Display modes |
dBm/dB/xW |
|
|
Measurement range |
+3 ~ -80 dBm |
|
|
Resolution |
Non-linear 0.001dB ；Linear：0.001nw/µW/mW |
|
|
Measurement accuracy |
±5% |
|
|
Other Specification |
||
|
|
USB |
|
|
Power Supply |
AC 90-260V，50～60Hz |
|
|
Operation Temperature |
|
|
|
Storage Temperature |
-25℃～+70℃ |
|
|
Dimensions |
260X240X130mm |
|
|
Weight(kg) |
2.8 |
|
